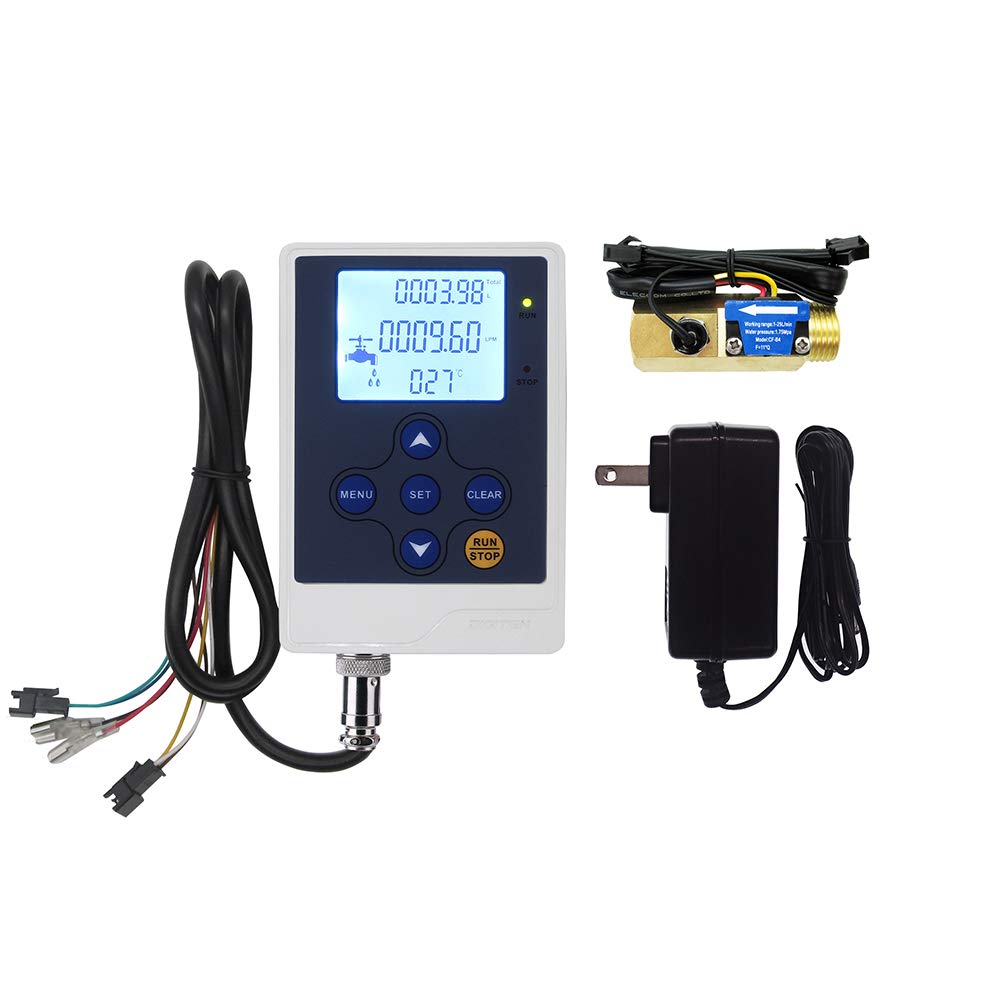

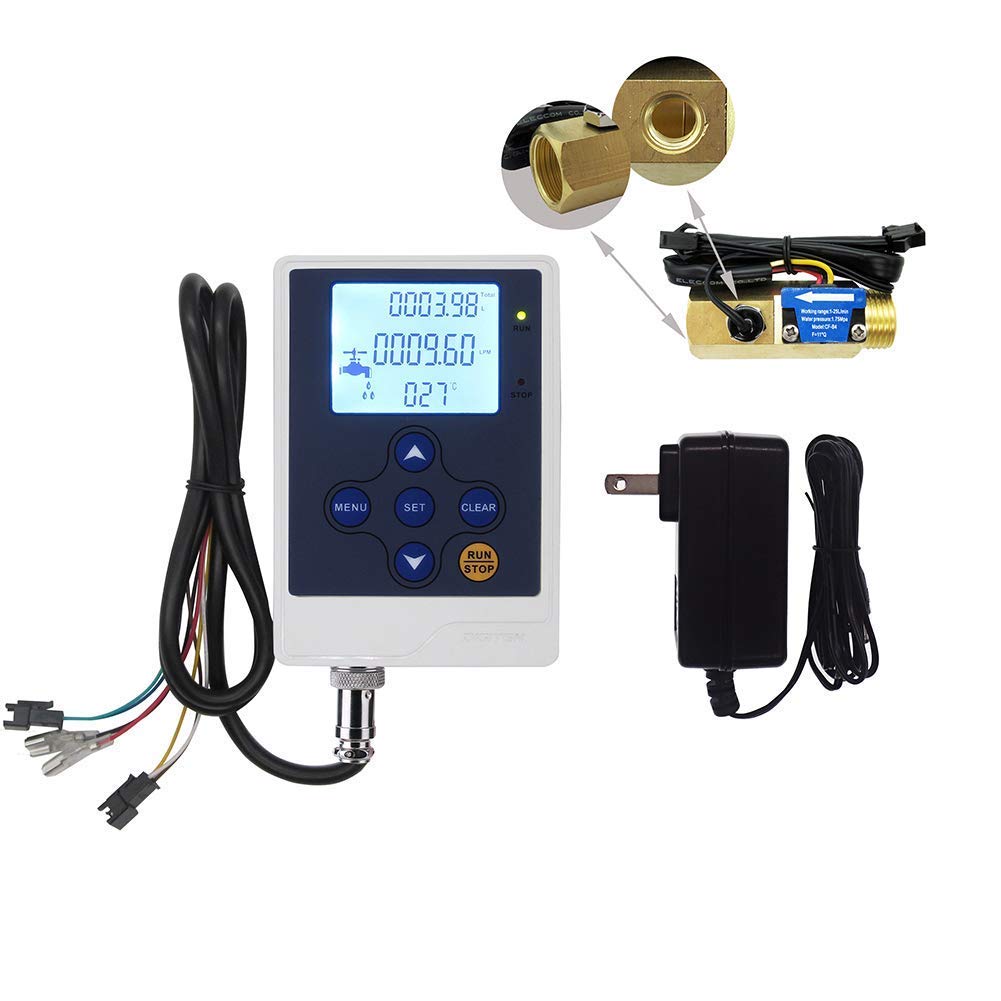

DIGITEN Water Flow Control LCD Display+G1/2"Thread Water Flow Hall Sensor Flowmeter with Temperature Sensor

Brand: DIGITEN

Features:

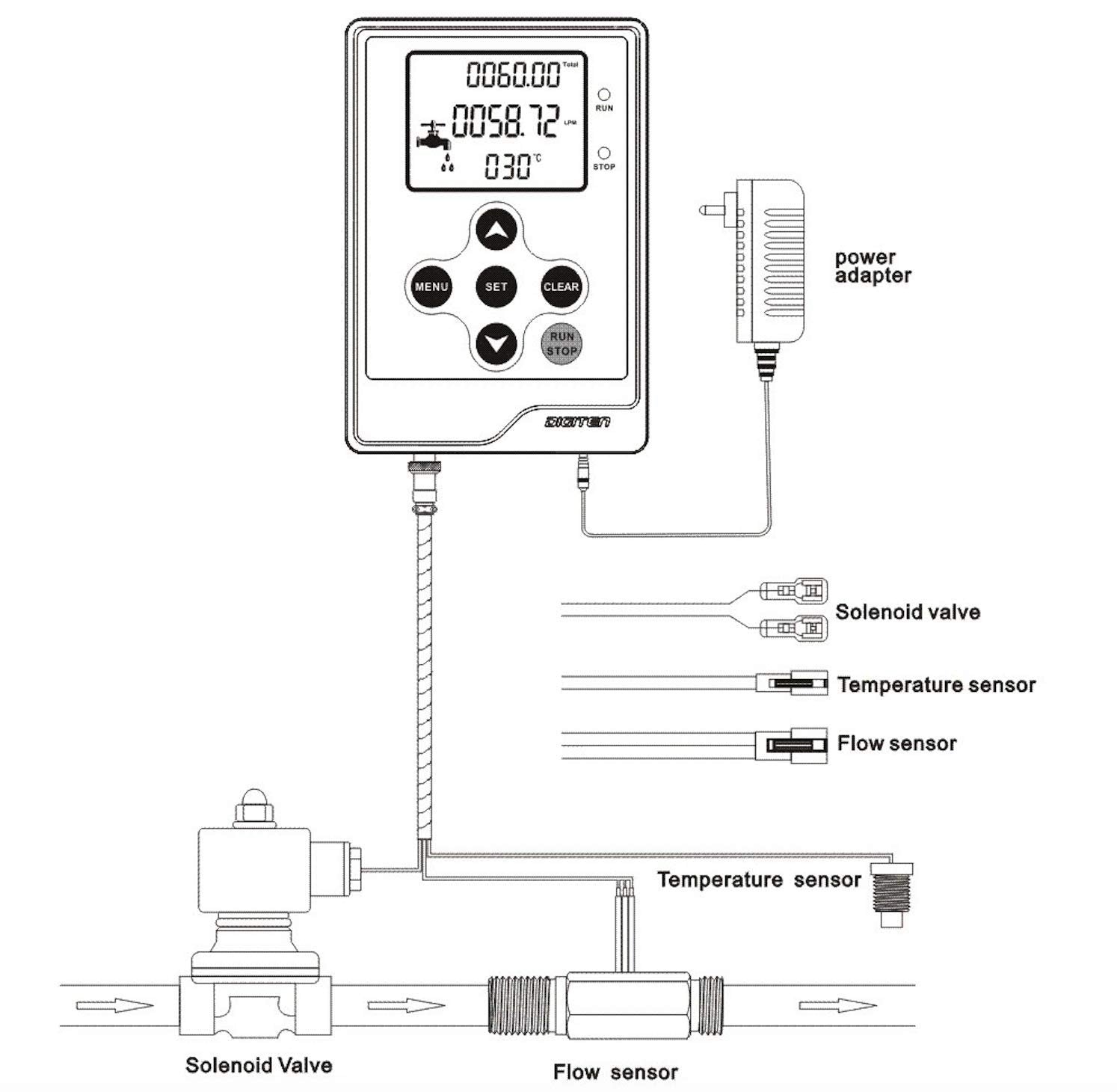

• This controller can connect to flow sensor,temperature sensor,solenoid valve.monitor gases,liquid flow.quantitative flow control,total flow alarm.
• Easy to install and control . The flow sensor works for Android and PI system.
• Control quantitative flow.when flow reach to the presetting flow,system will output signal to solenoid valve(ON/OFF).
• Monitor real-time flow rate
• Display temperature of the liquid.need to extra add temp sensor.

model number: DFC15FB4

Part Number: DFC15FB4

Details: FEATURES

Quantitative control
Controller will turn off the solenoid value automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor
Come with temperature sensor, it can measure liquid temperature Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance

TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-120℃/32-212℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Operation Environment: Temperature: 0-50℃/32-122℉ Relative Humidity: <85%

Packaging include

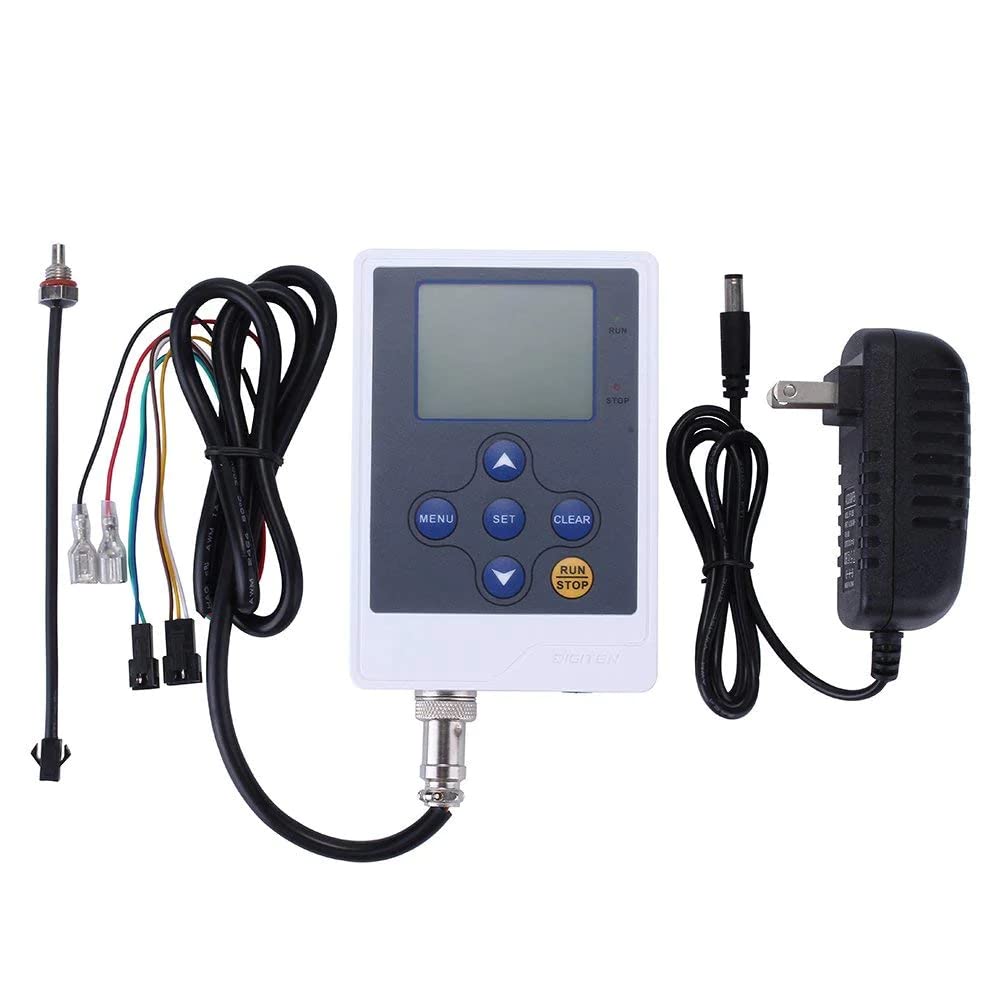

1 x DFC15 controller

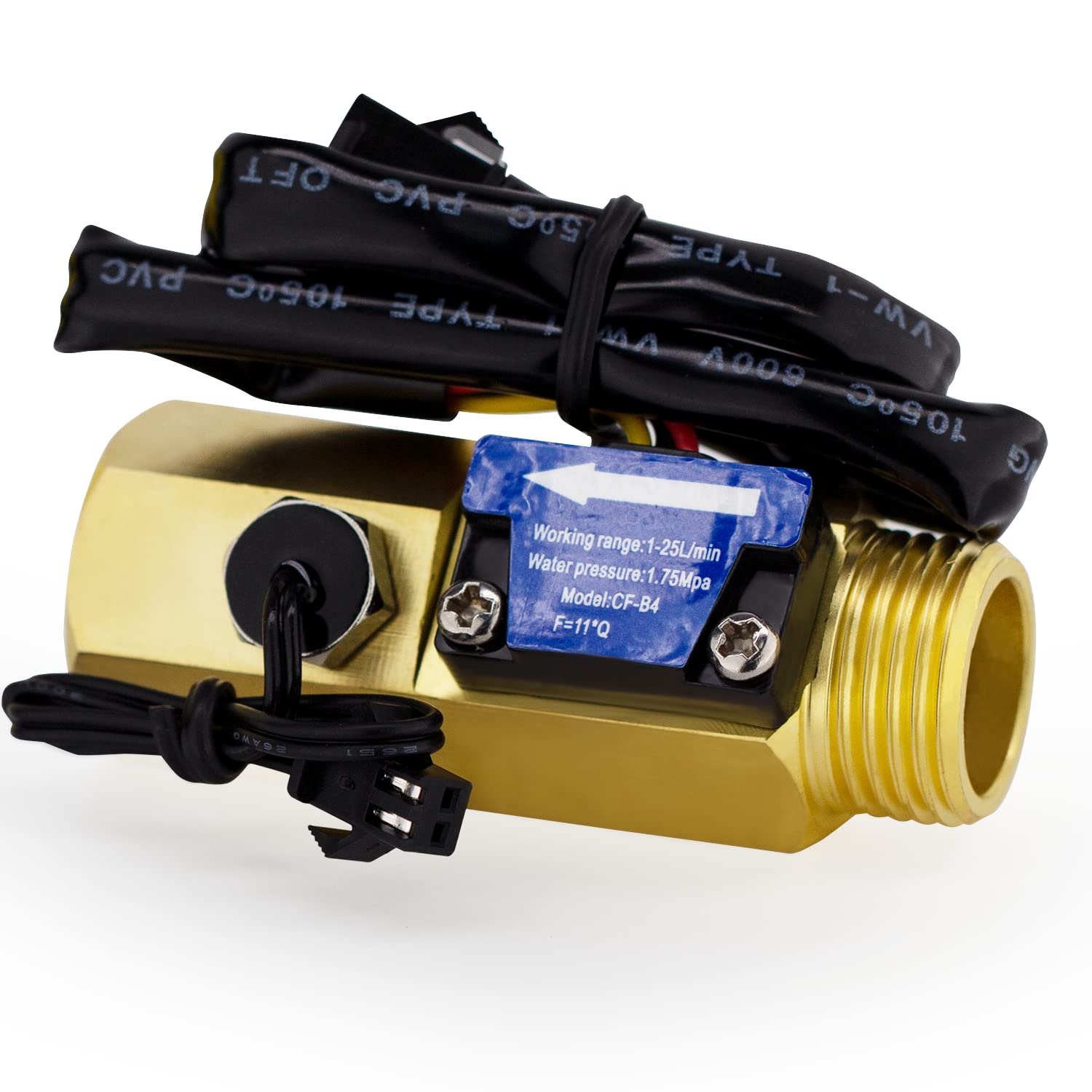

1 x G1/2' flow sensor

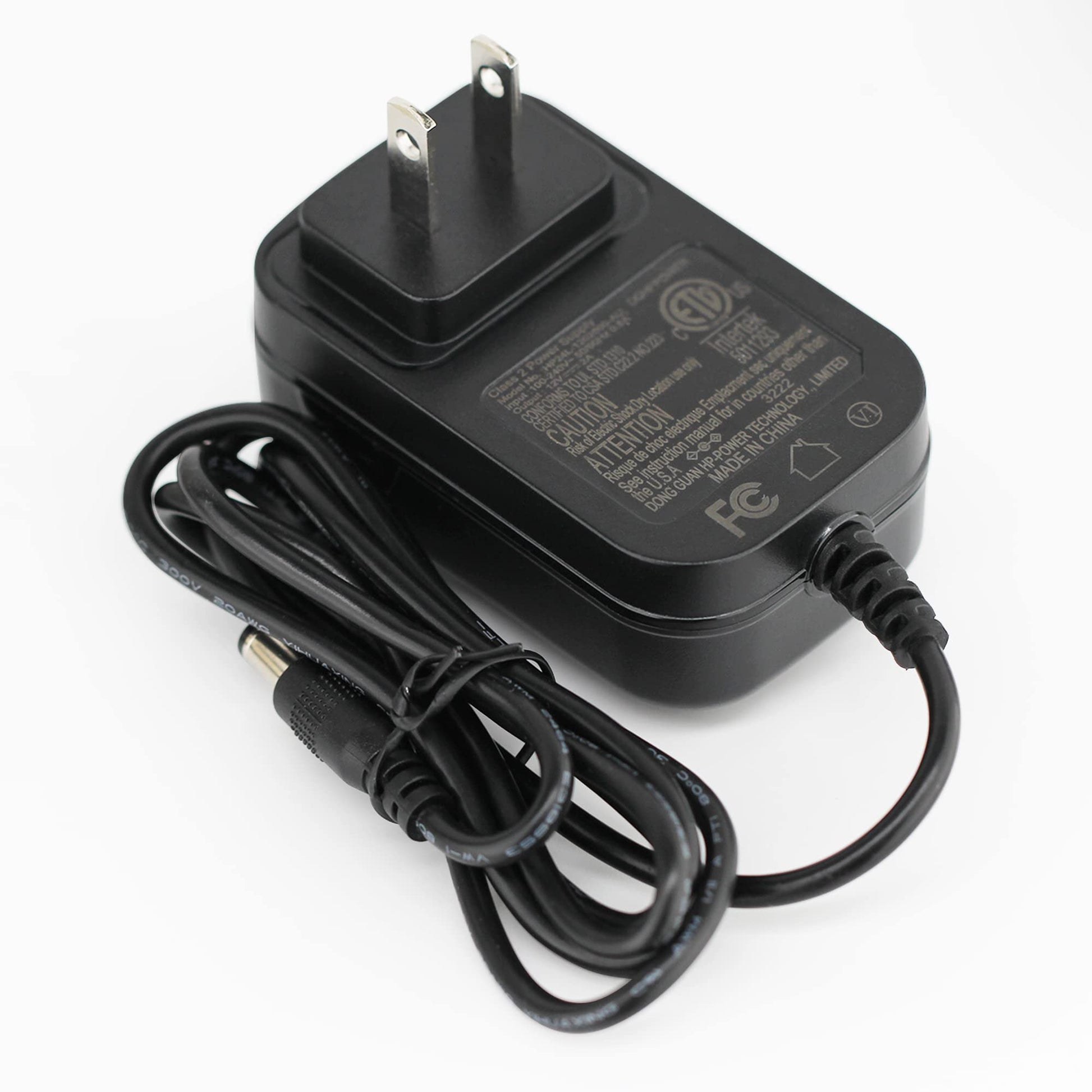

1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction

Package Dimensions: 5.4 x 4.0 x 3.8 inches
