GREDIA Digital LCD Display Quantitative Controller Water Control + 1" Hall Effect Flow Sensor Flowmeter + 1" Solenoid Valve N/C Normally Closed +24V Power

Brand: GREDIA

Features:

• Flow range:1-60L/min, Water Pressure: ≤1.2Mpa
• Monitor real-time flow rate and total flow number
• Control quantitative flow
• You can set the K constant for various flow meters.
• It is suitable for chemical (pharmaceutical), pharmaceutical, food, small and medium-sized pure water machines, quantitative (batch) management control of gas and liquid flows in industry.

Part Number: GR-LC108

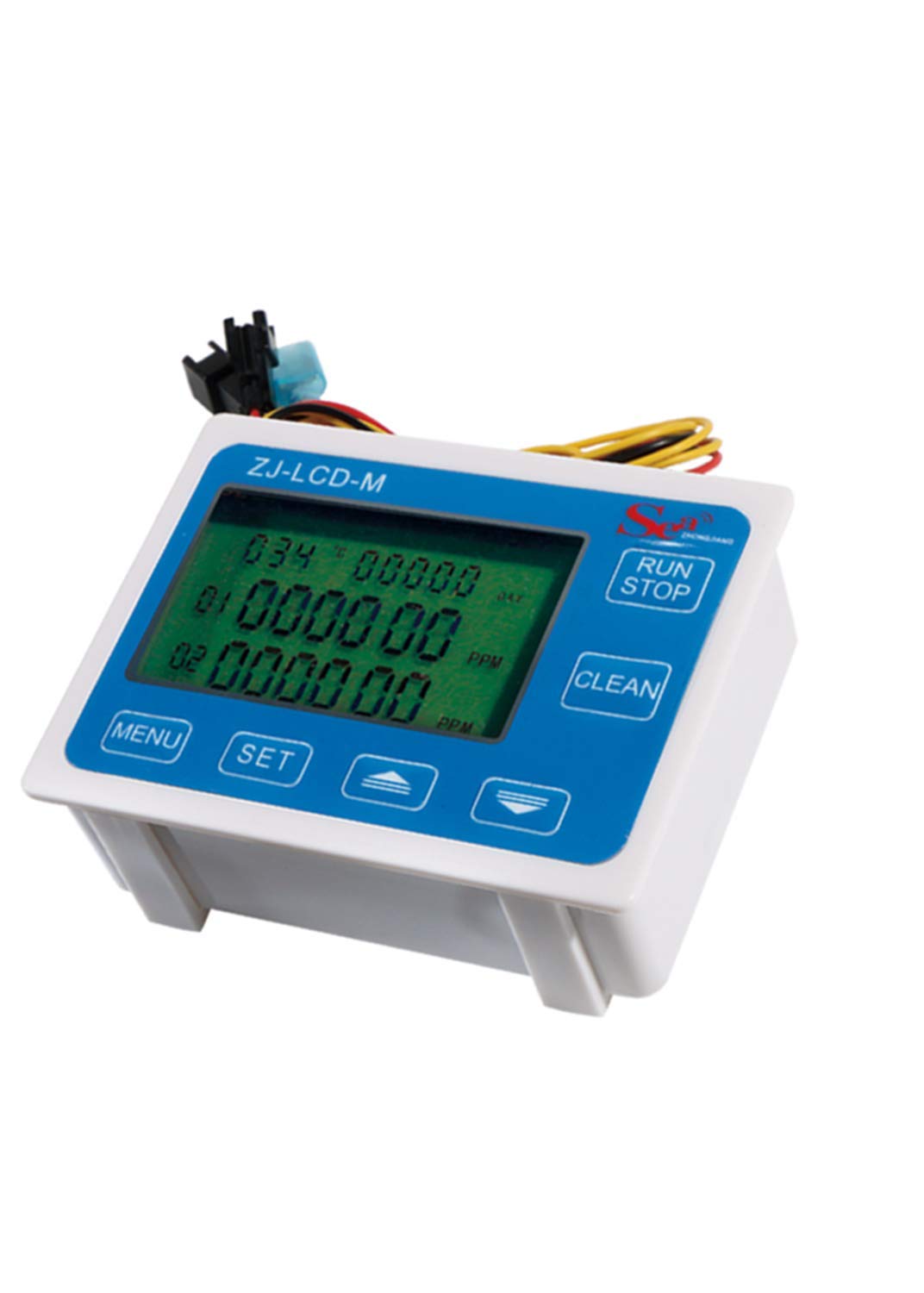

Details: The LCD controller can monitor water flow, total flow, and control quantitative flow. When the flow reaches the set amount, you can reset the quantitative flow. The controller sends a signal to the valve, shuts off the water flow and automatically alarms. It is combined with pulse output flow sensor and solenoid valve to form a flow control system. It is suitable for chemical (pharmaceutical), pharmaceutical, food, small and medium-sized pure water machines, quantitative (batch) management control of gas and liquid flows in industry.

Features:
1. Light and thin design, flexible installation: suitable for assembly of various models, easy to use.
2. the use of a large white backlight LCD screen: beautiful, generous, so that it is truly digital.
3. the use of an ultra-wide range of external power supply: make it more widely used, more connected to a variety of models.
4. It can realize the management and display of flow and quantitative (batch) of gas and liquid in various industries.
5. temperature detection: can detect the temperature and display of each liquid.
6. You can set the K constant for various flow meters.

Specification:
Operating voltage range: DC24V±8/1A
Flow range:1-60L/min, Water Pressure: ≤1.2Mpa
LCD size: 3inch, built-in backlight; case size: 100*75*35mm (39.3*29.5*13.7inch)
Solenoid valve working voltage: DC12V / 0.3A-0.5A (normally closed)

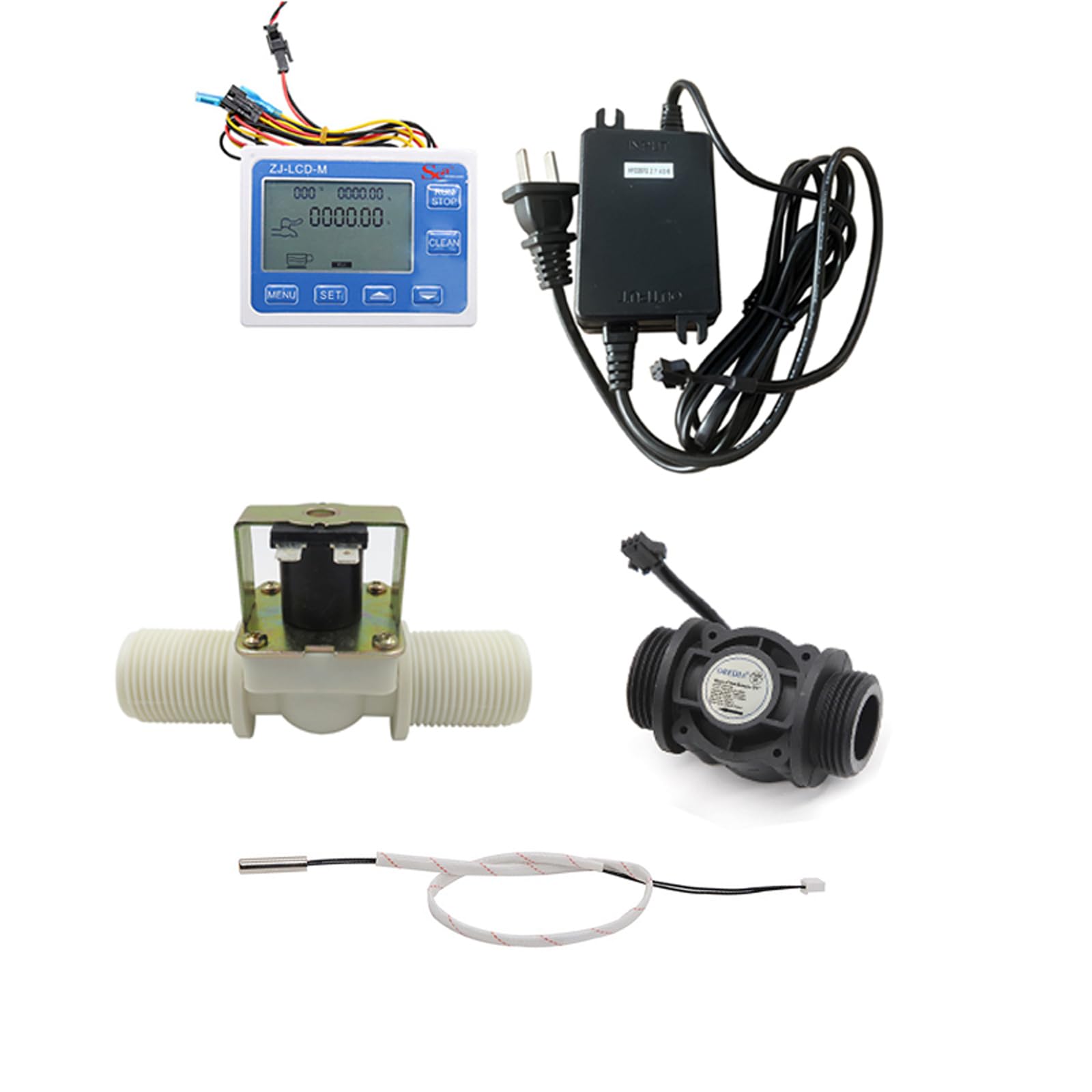

Package Includes:
1 x LCD flow display controller

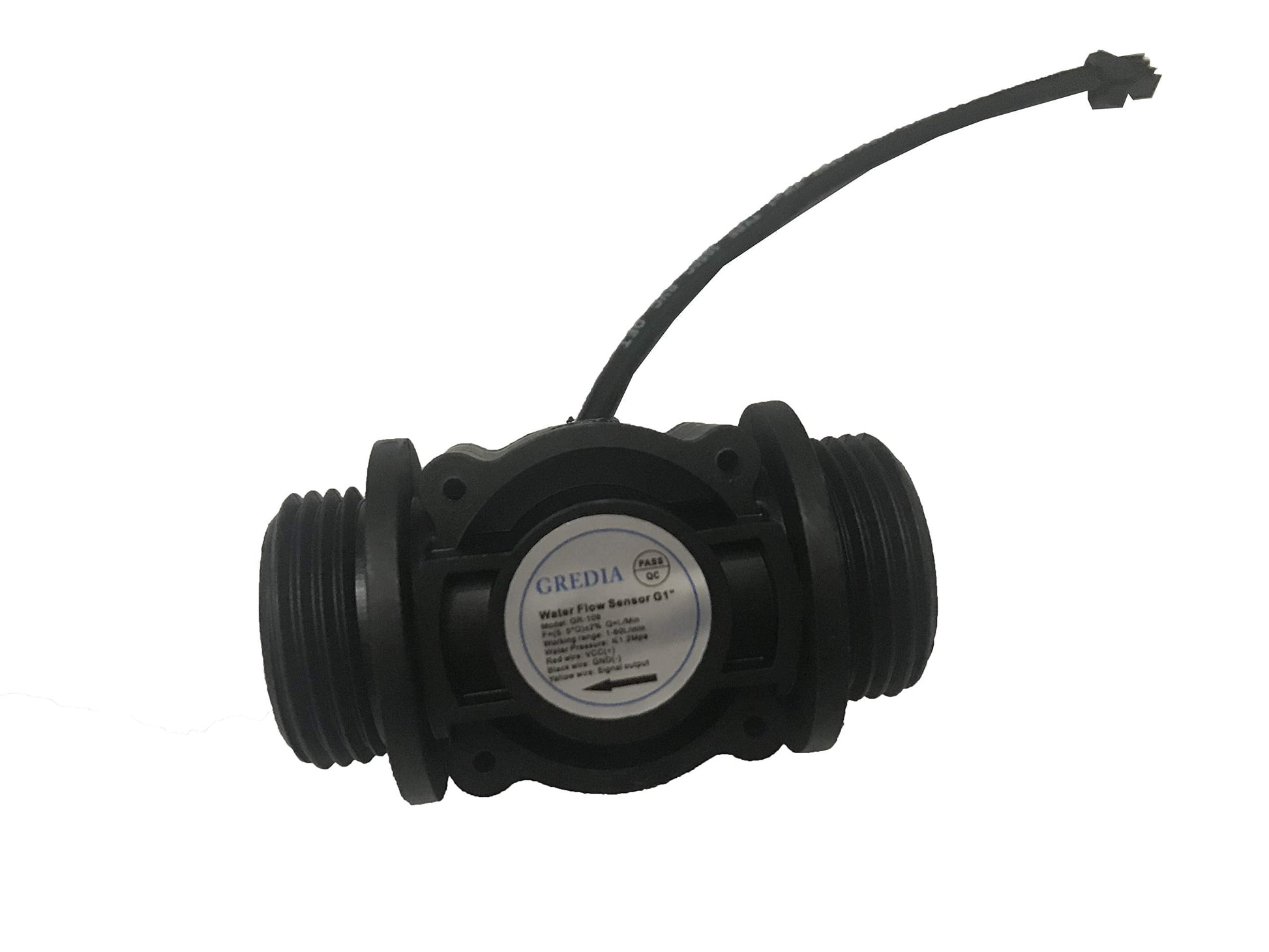

1 x 1 inch flowmeter

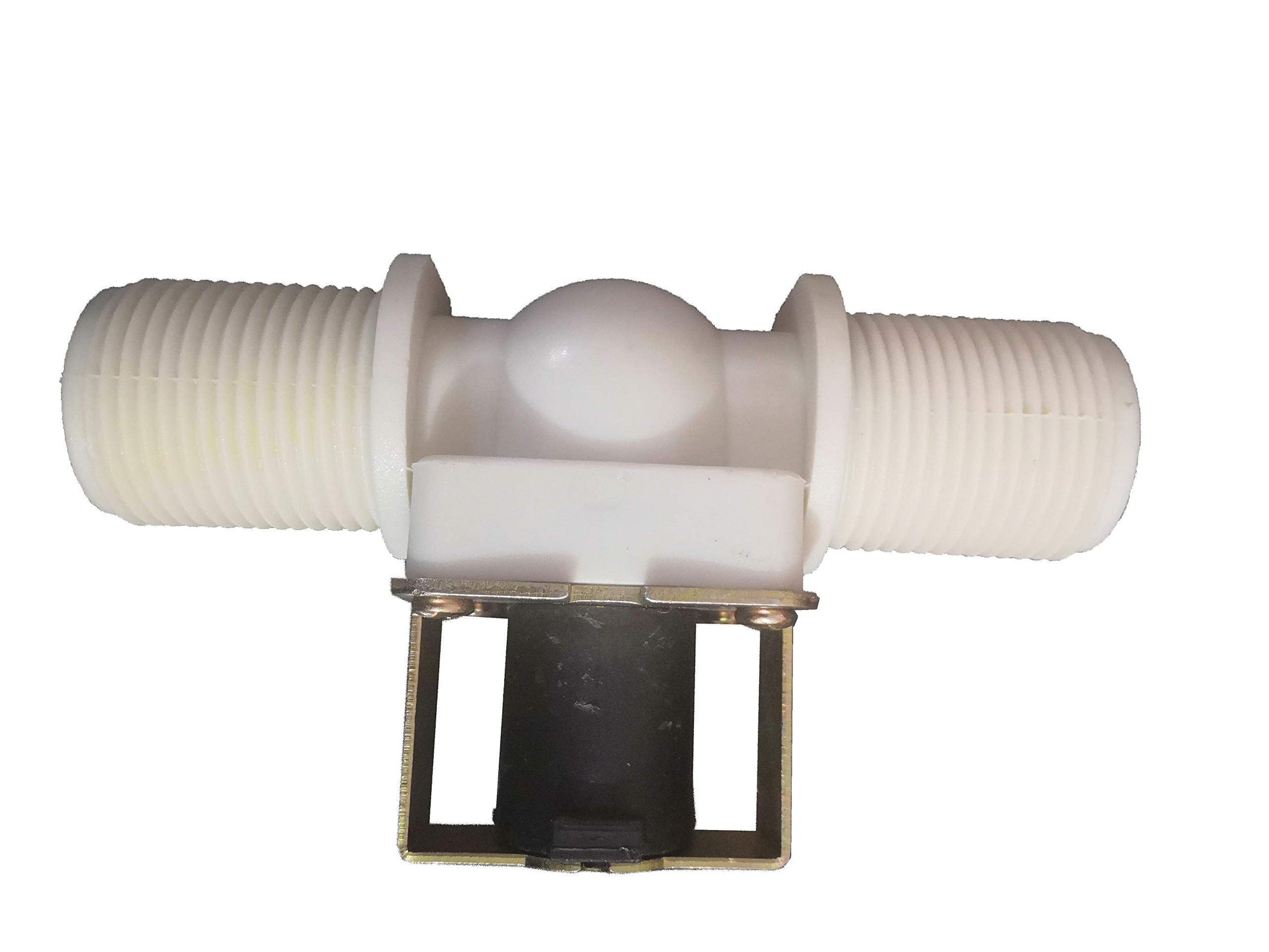

1 x 1 inch solenoid valve

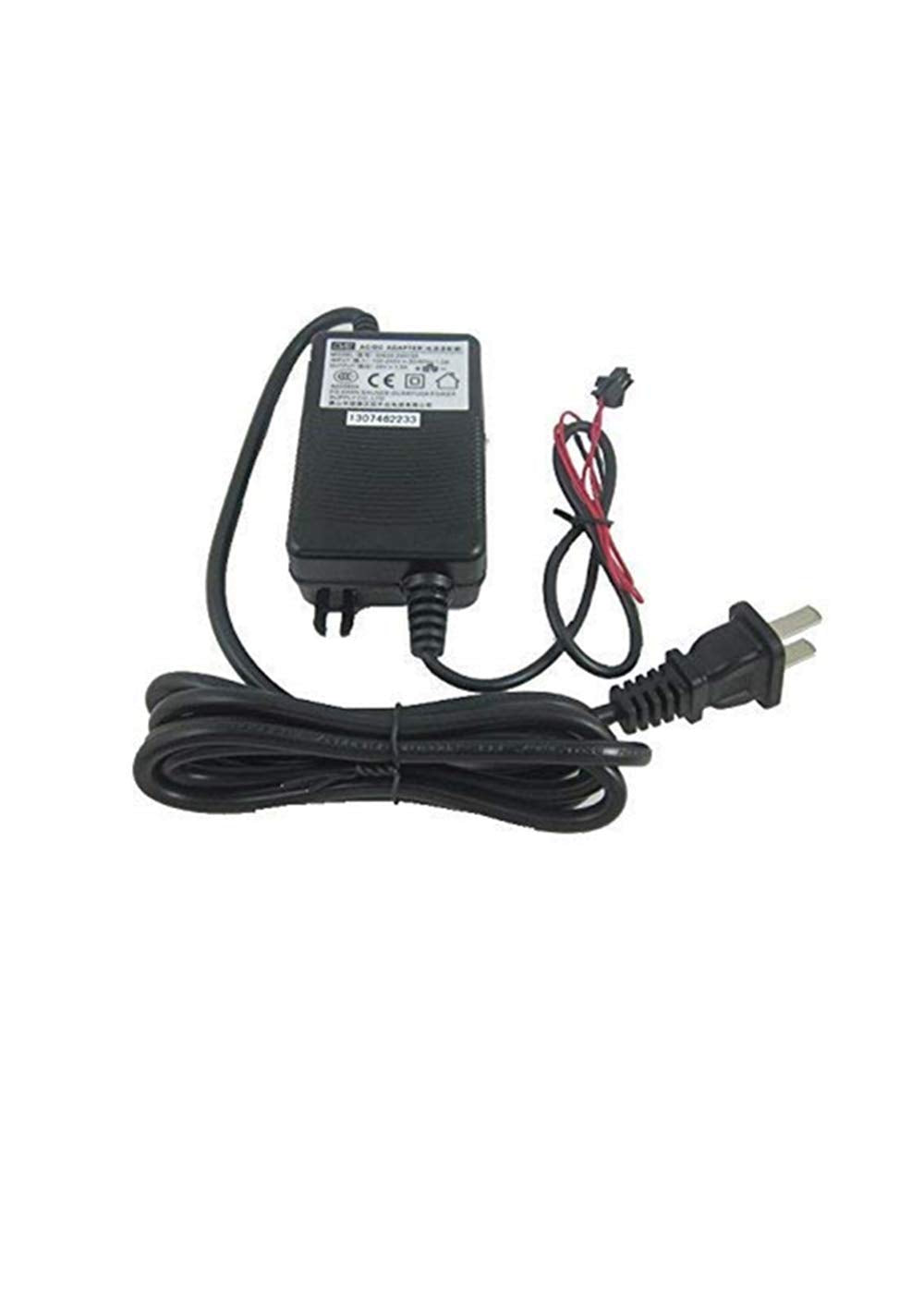

1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction

EAN: 0606829106239

Package Dimensions: 10.9 x 7.8 x 3.8 inches
