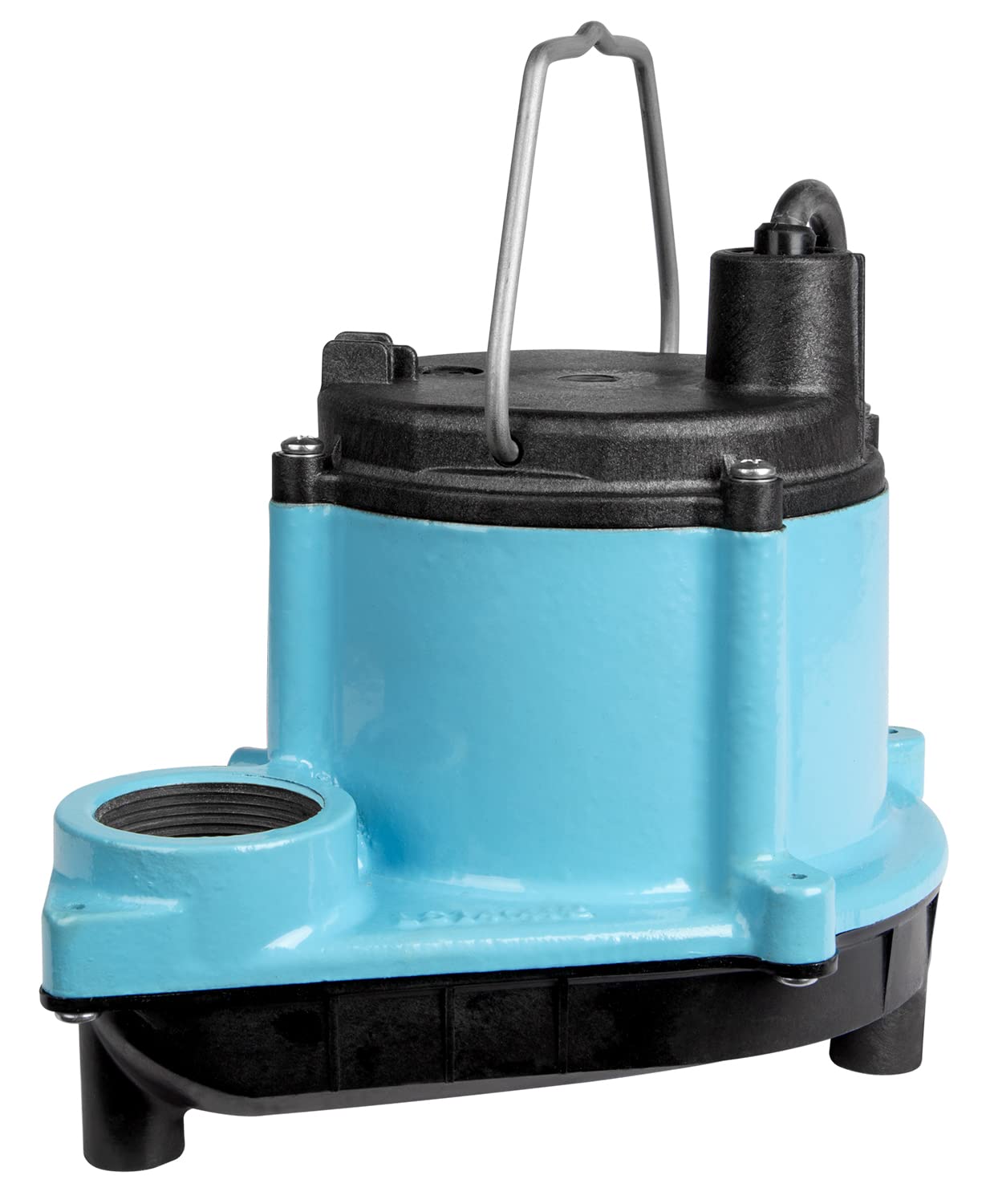

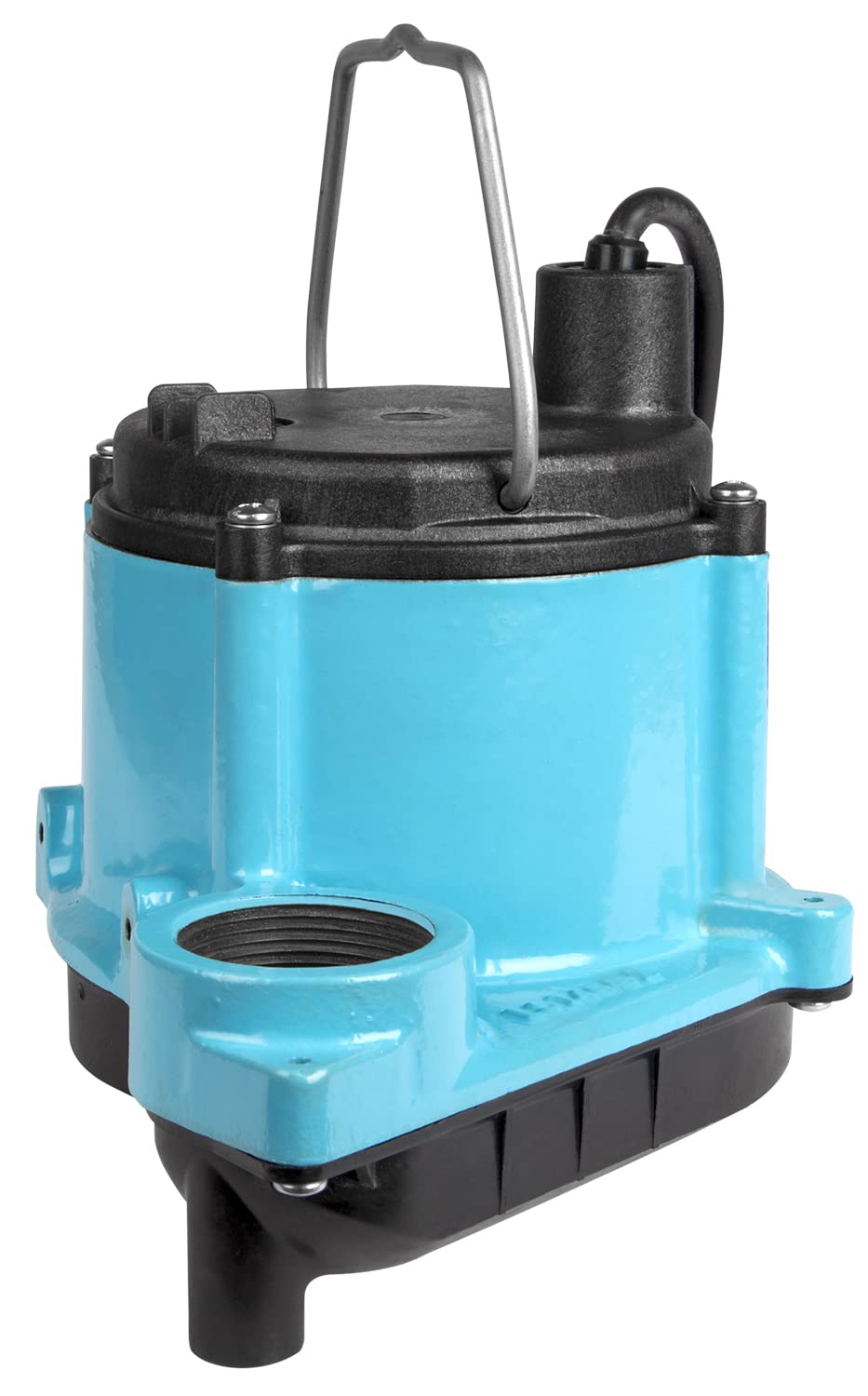

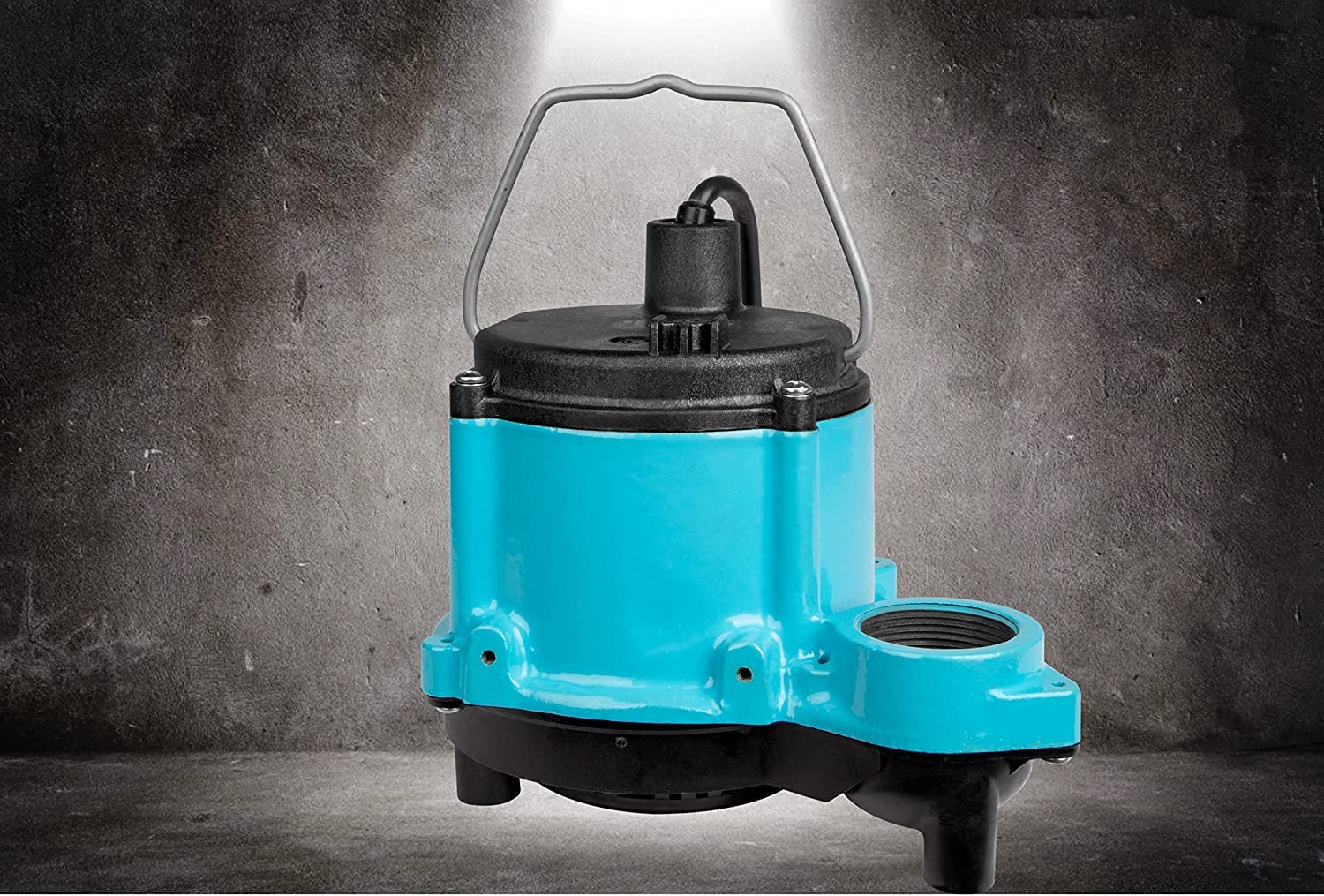

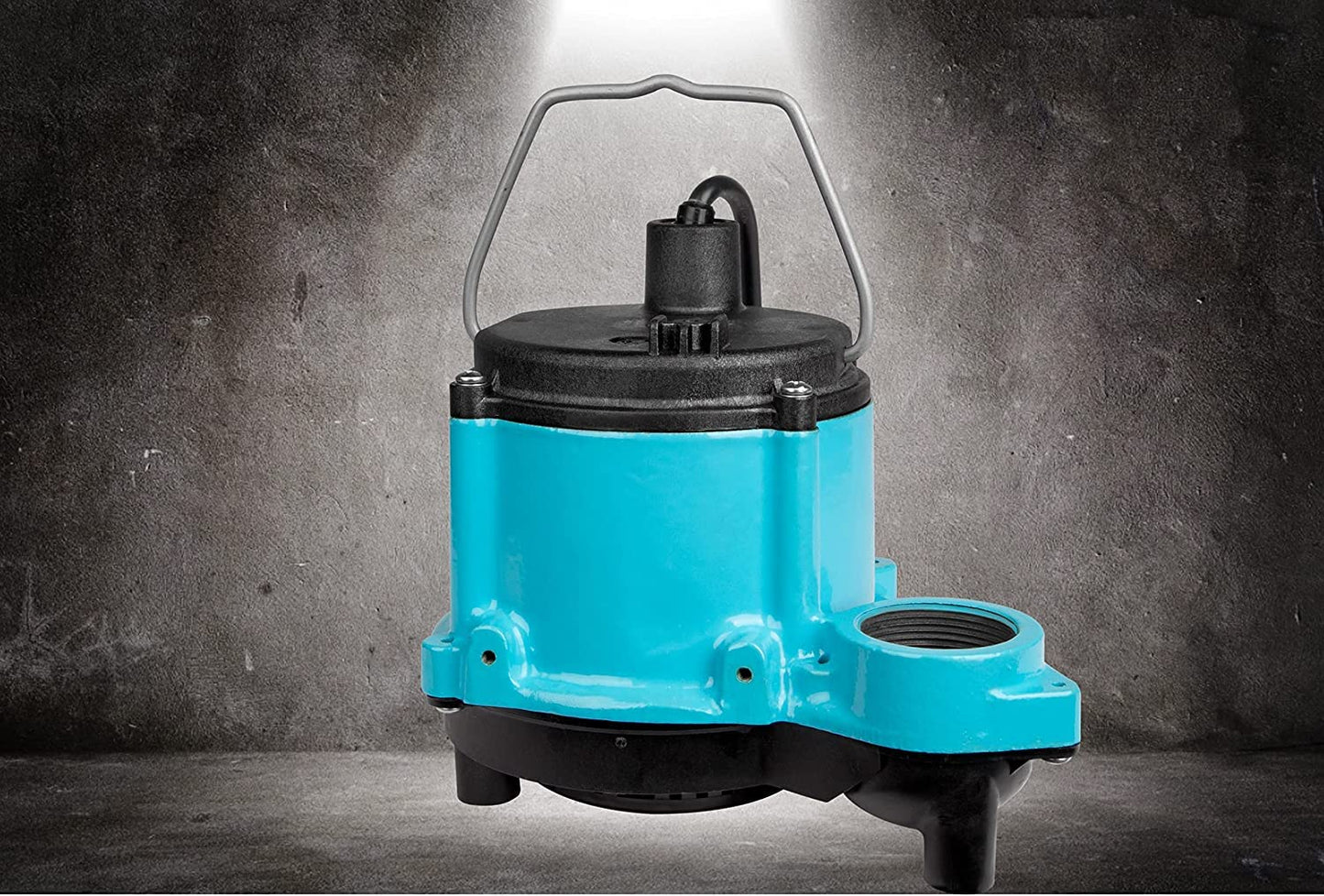

Little Giant 6-CIM-R 115-Volt, 1/3 HP, 2750 GPH Manual (No Switch) Submersible Sump Pump for Sump Systems and General Dewatering, 10-Ft. Cord, Blue, 506271

Brand: Little Giant

Color: Blue

Features:

• MANUAL SUBMERSIBLE PUMP: ideal for sump pump systems with a separate switch (switch sold separately), emergency water removal or water transfer applications

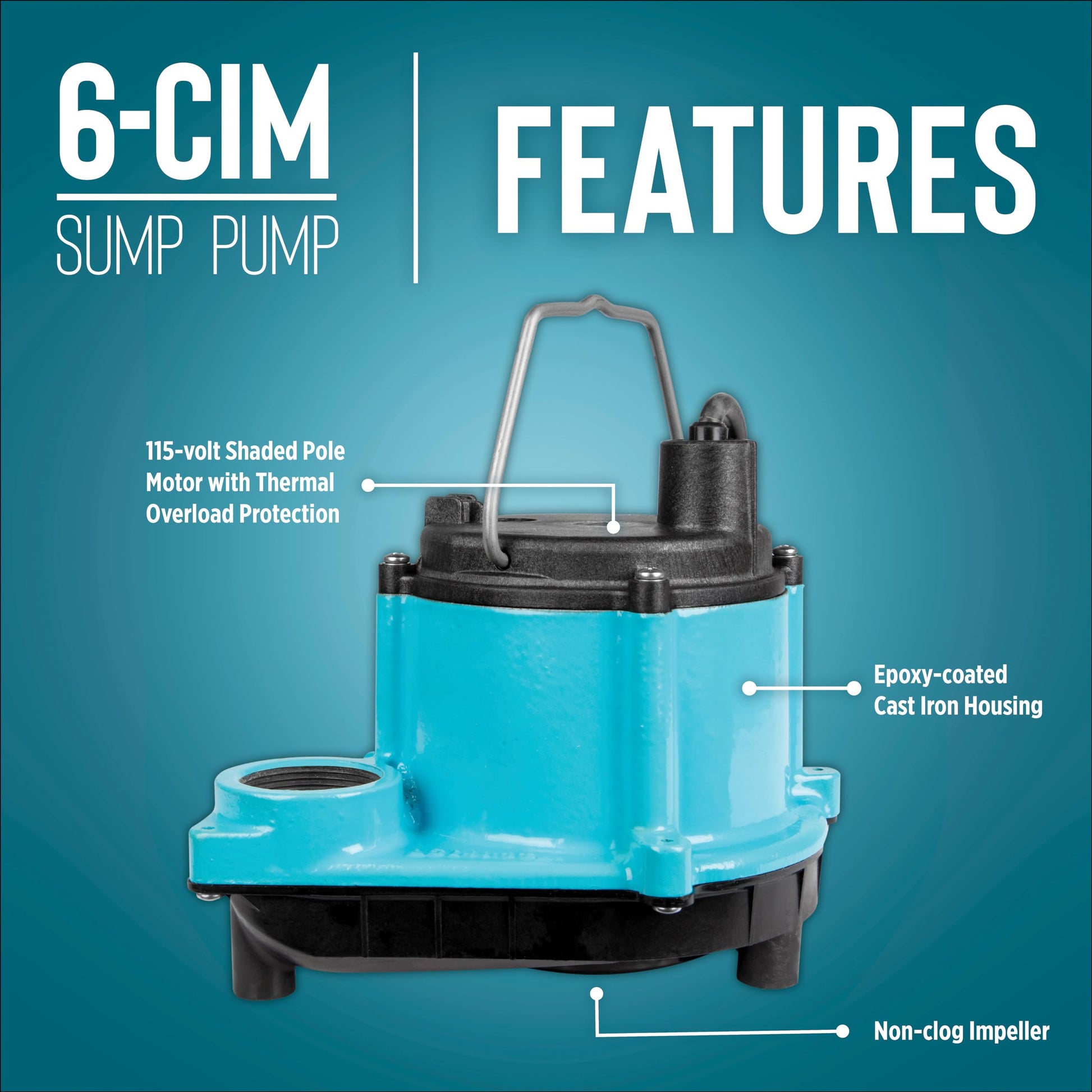

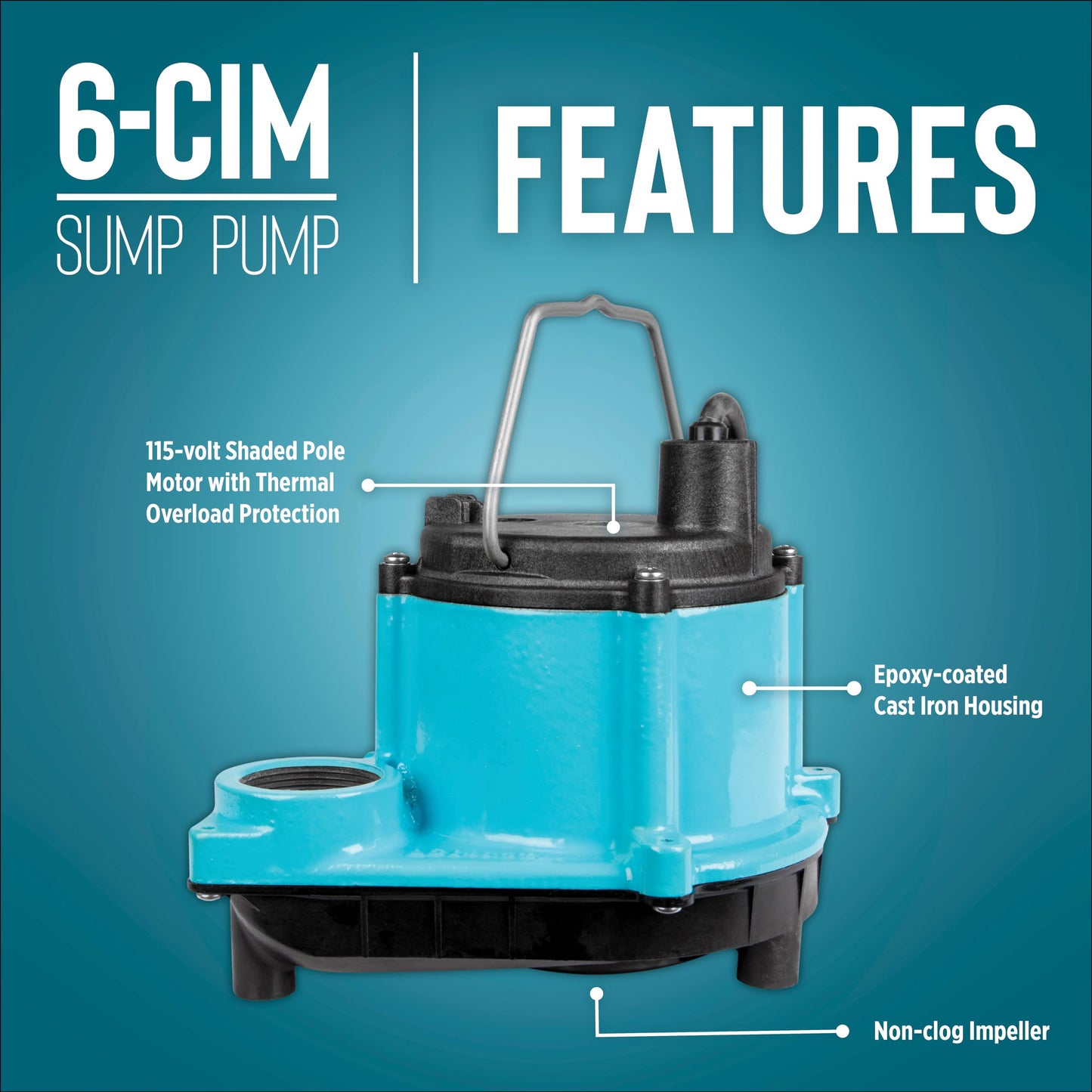

• BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
• CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada

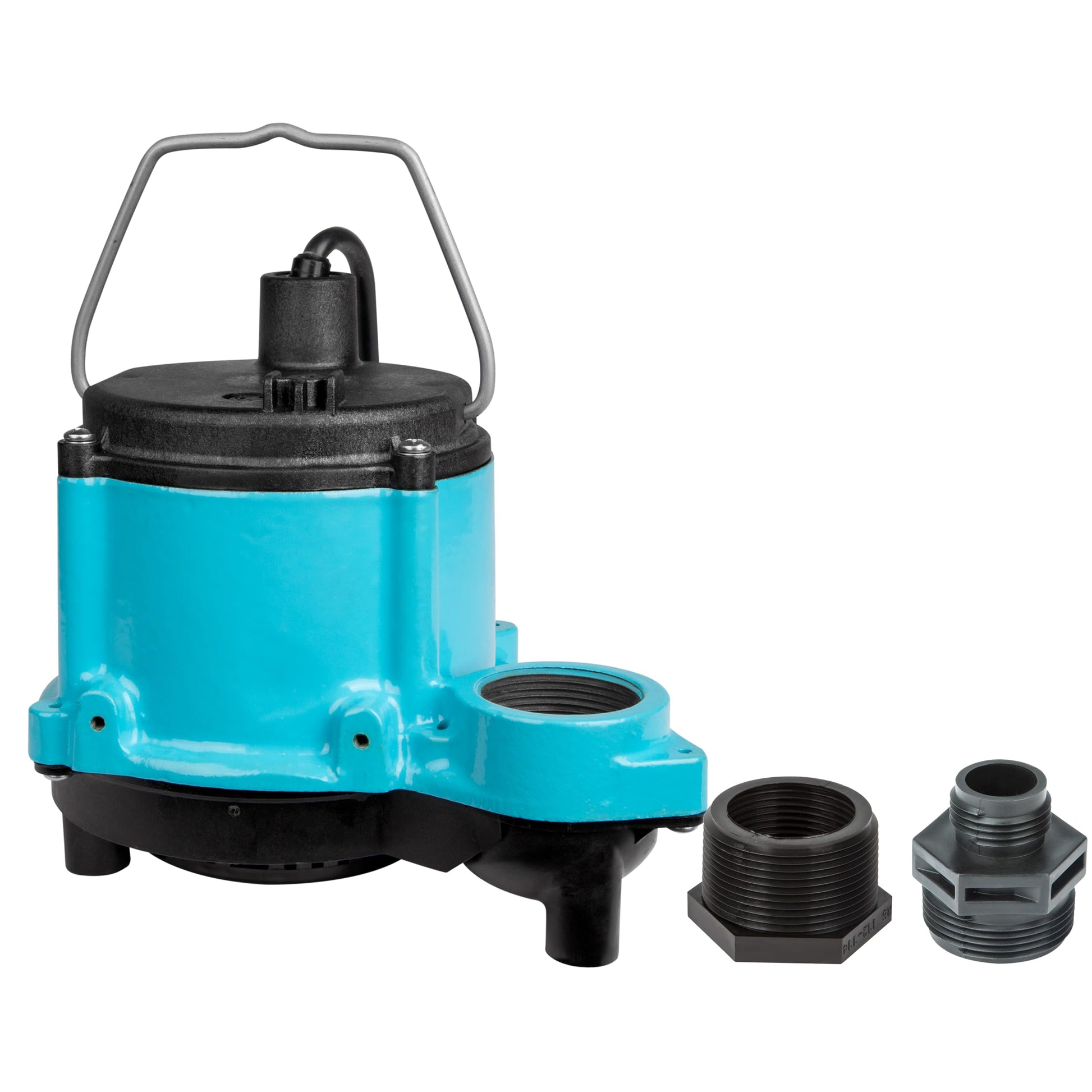

• MULTIPLE FITTINGS: 1-1/2-inch FNPT discharge; 1-1/4-Inch FNPT adapter and 3/4-inch garden hose adapter included
• SPECIFICATIONS: 1/3 hp; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 gph at 5' lift; 18' shut-off; 7.8 PSI; 10' cord; 1.5' FNPT discharge; 140° max fluid temperature

model number: 506271

Part Number: 506271

Details: The Little Giant 6 Series submersible epoxy-coated cast iron sump pumps are equipped with a 1/3 hp 115-volt, shaded pole, oil-filled motor with thermal overload protection and is designed for continuous duty. These pumps deliver up to 2760 gph (46 gpm) at 5' lift, have a shut-off of 18' and a maximum psi of 7.0. These pumps are equipped with a 1-1/2 FNPT discharge. The maximum fluid temperature is 140 °F. The 6-Series is cCSAus listed in the USA and Canada.

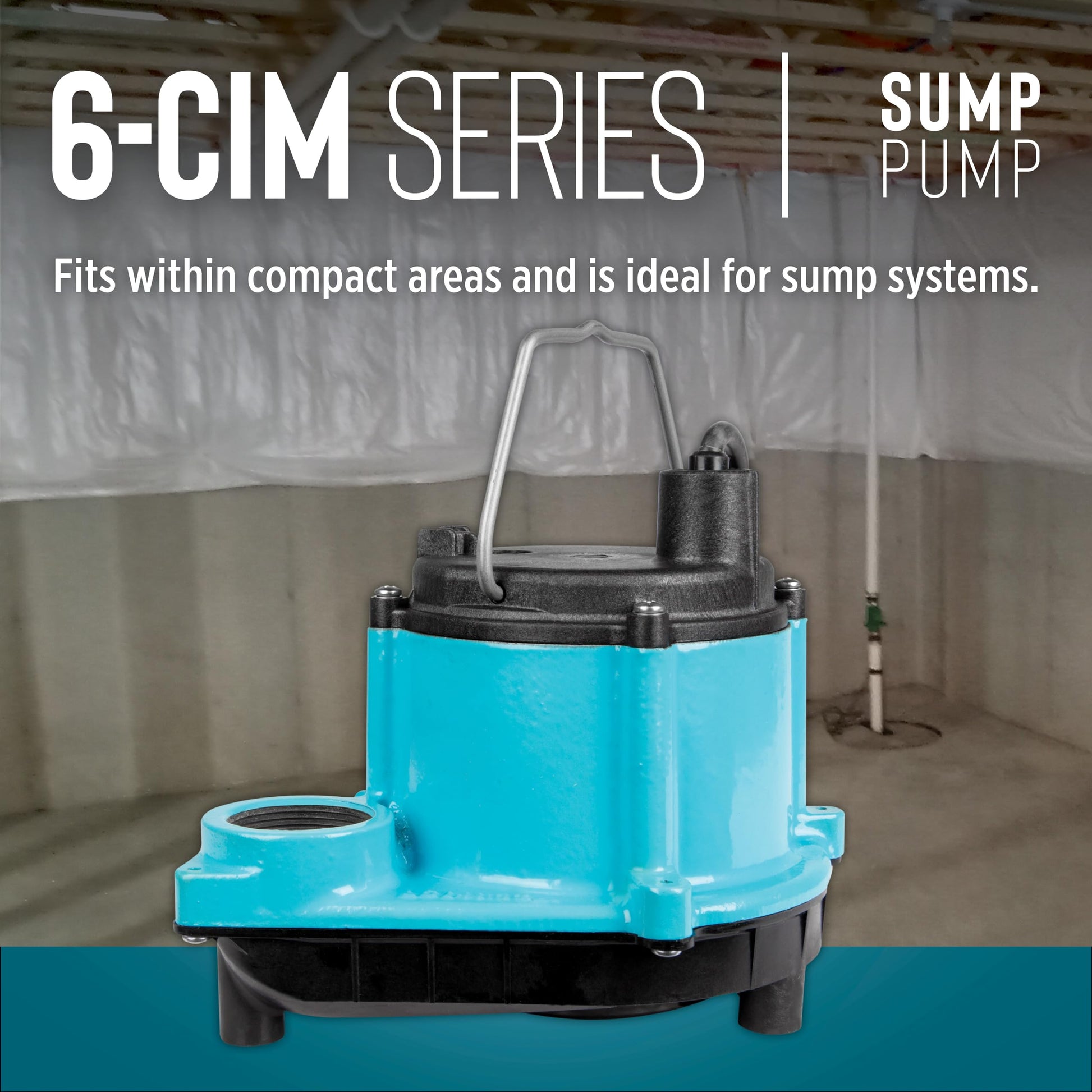

The Little Giant 506271 6-CIM manual sump pump is designed for sump systems, emergency water removal or general water transfer. This system does not come with a switch. If used in a sump system, a piggyback switch can be easily attached and is sold separately. This pump comes with a 10' cord, a 1-1/4' FNPT reducer and 3/4' garden hose adapter.

SWITCH OPTION TIPS:

- Integral diaphragm switches are designed for sump systems only. Minimum basin diameter required is 10'.

- Mid-level integral diaphragm switches cycle more frequently. They are designed for shallow under sink or laundry tub systems. Minimum basin diameter required is 10'.

- Piggyback float switches are designed for sump systems, emergency water removal or water transfer applications. They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. Float switches require more room to activate the switch, the minimum basin diameter is 18'.

- Piggyback diaphragm switches are designed for sump systems, emergency water removal or water transfer applications; They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. The minimum basin diameter is 10'.

- Manual does not come with a switch; piggyback switches (sold separately) can be added easily.

EAN: 0010121062719

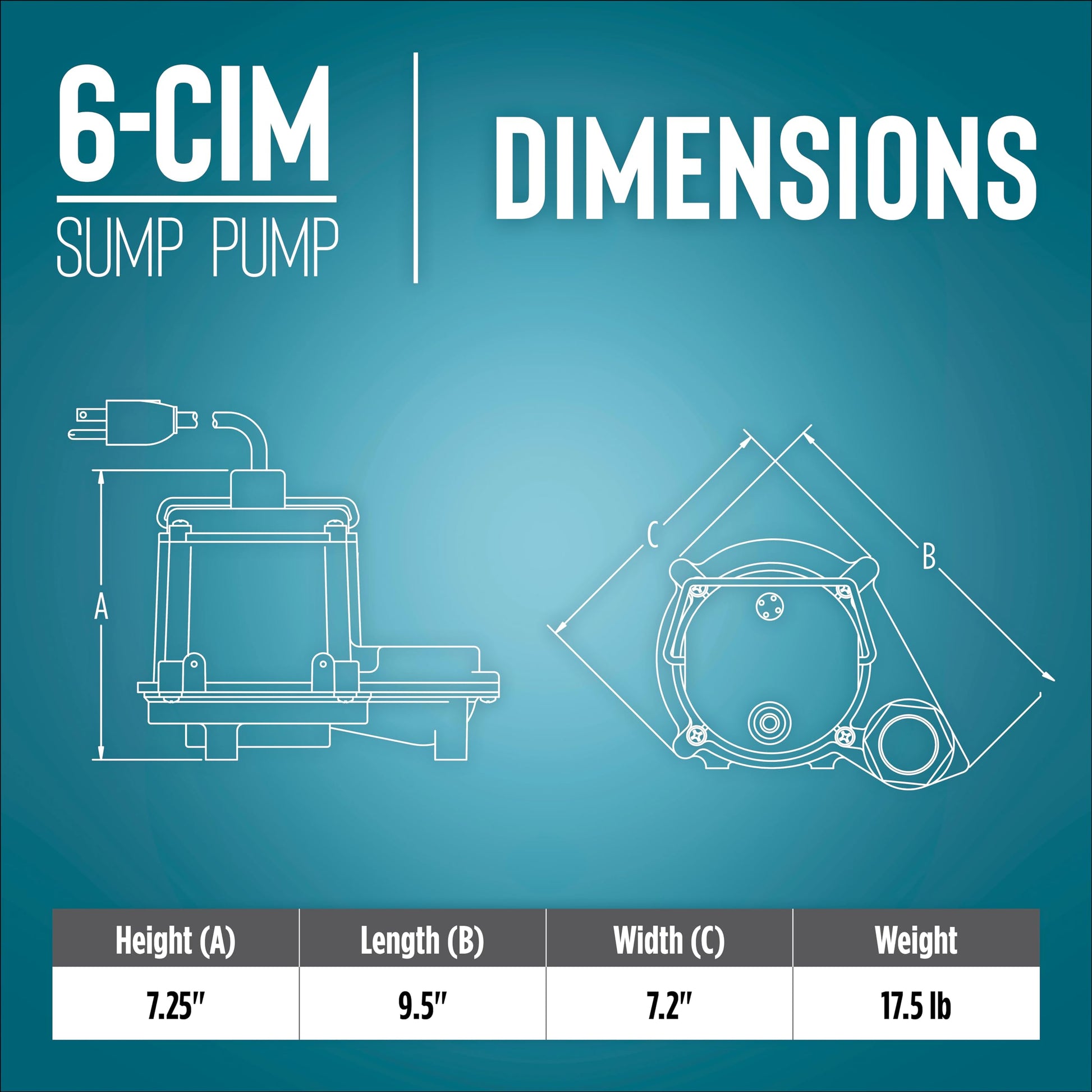

Package Dimensions: 10.0 x 10.0 x 9.0 inches
