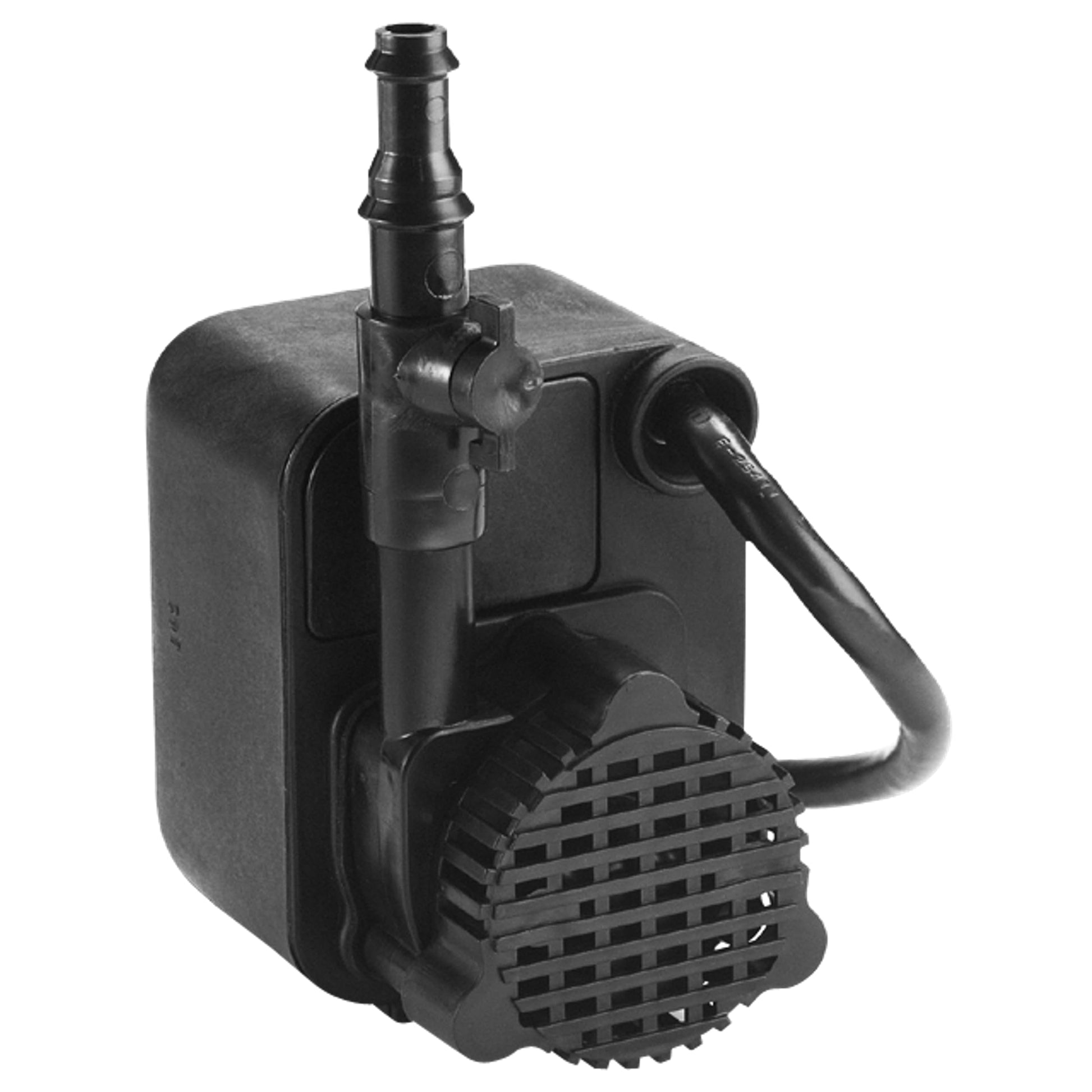

Little Giant PE-1H-PW 115 Volt, 1/125 HP, 186 GPH Epoxy Encapsulated Small Submersible Pump for Fountains and Shallow Water Applications, Hooded Volute and Flow Control Valve, 6-Ft Cord, Black, 566604

Brand: Little Giant

Color: Black

Features:

• APPLICATIONS: for commercial, industrial and home use ideally suited for shallow statuary fountains, water displays, and other water transfer or recirculation applications
• BUILT TO LAST: epoxy encapsulated oil-filled motor, impedance protected, polypropylene volute, impeller, and screen; neoprene gasket; double-lip Nitrile shaft seal

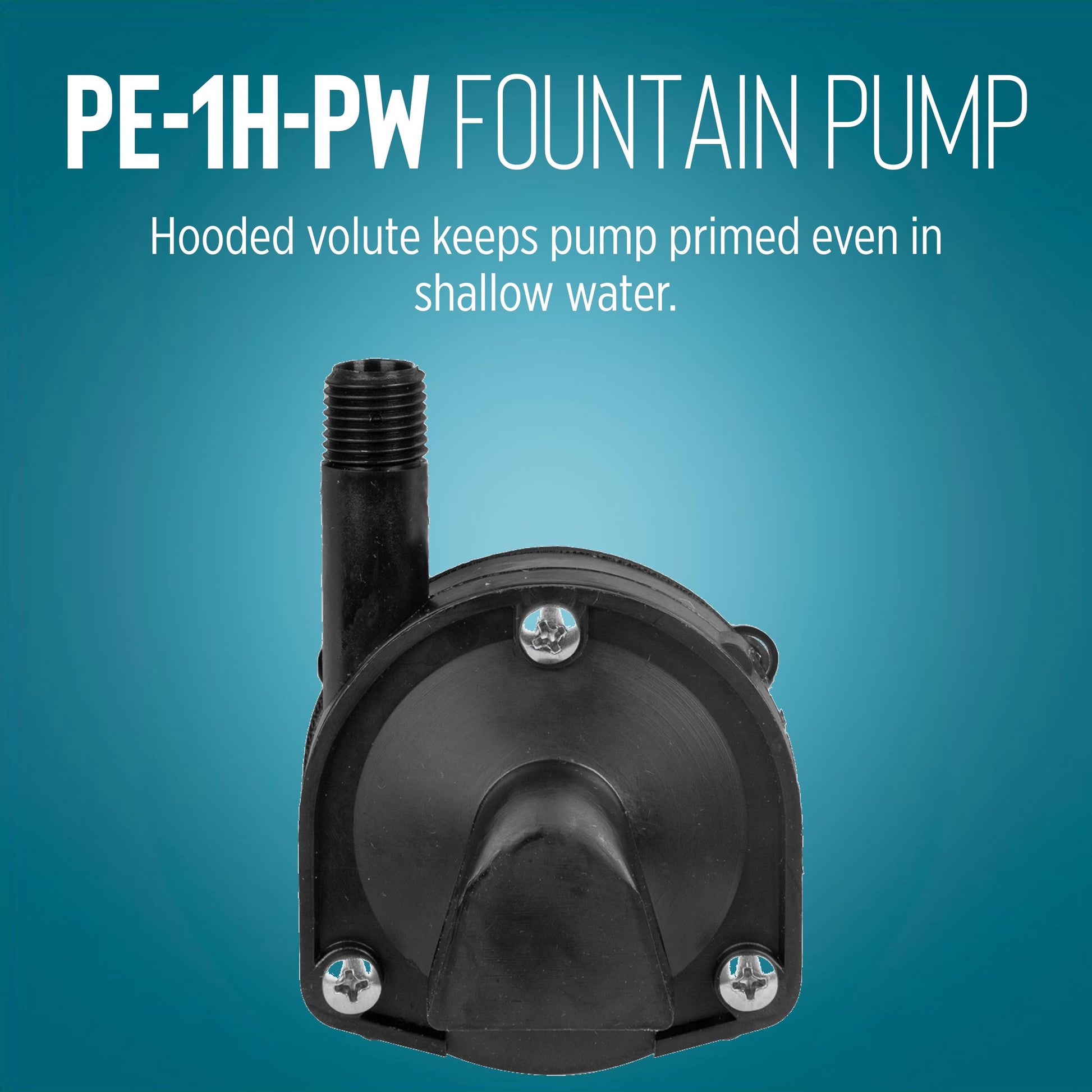

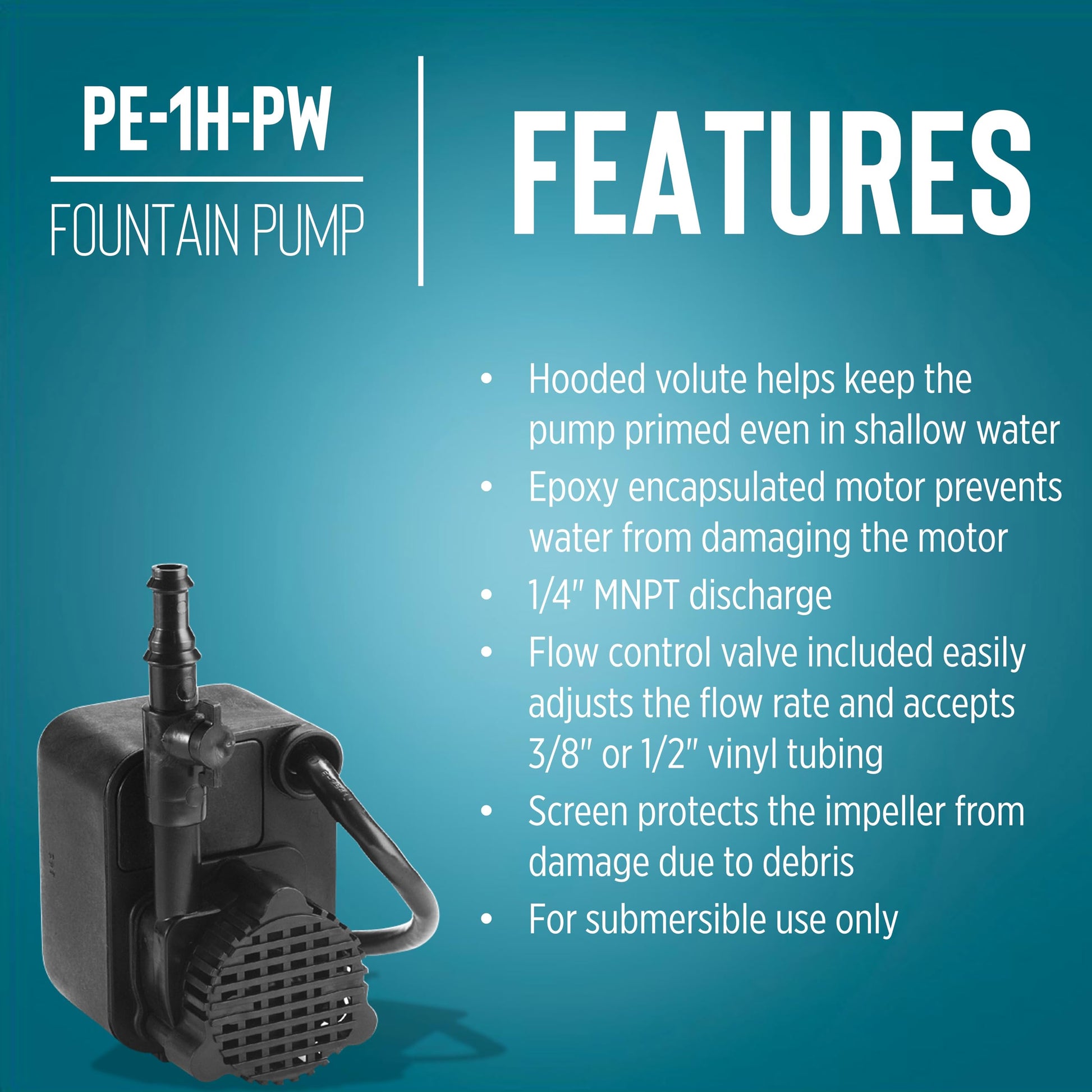

• HOODED VOLUTE DESIGN: designed for shallow fountains and basins, keeps pump primed in shallow water conditions when used in the upright position; screened intake protects the impeller from damage

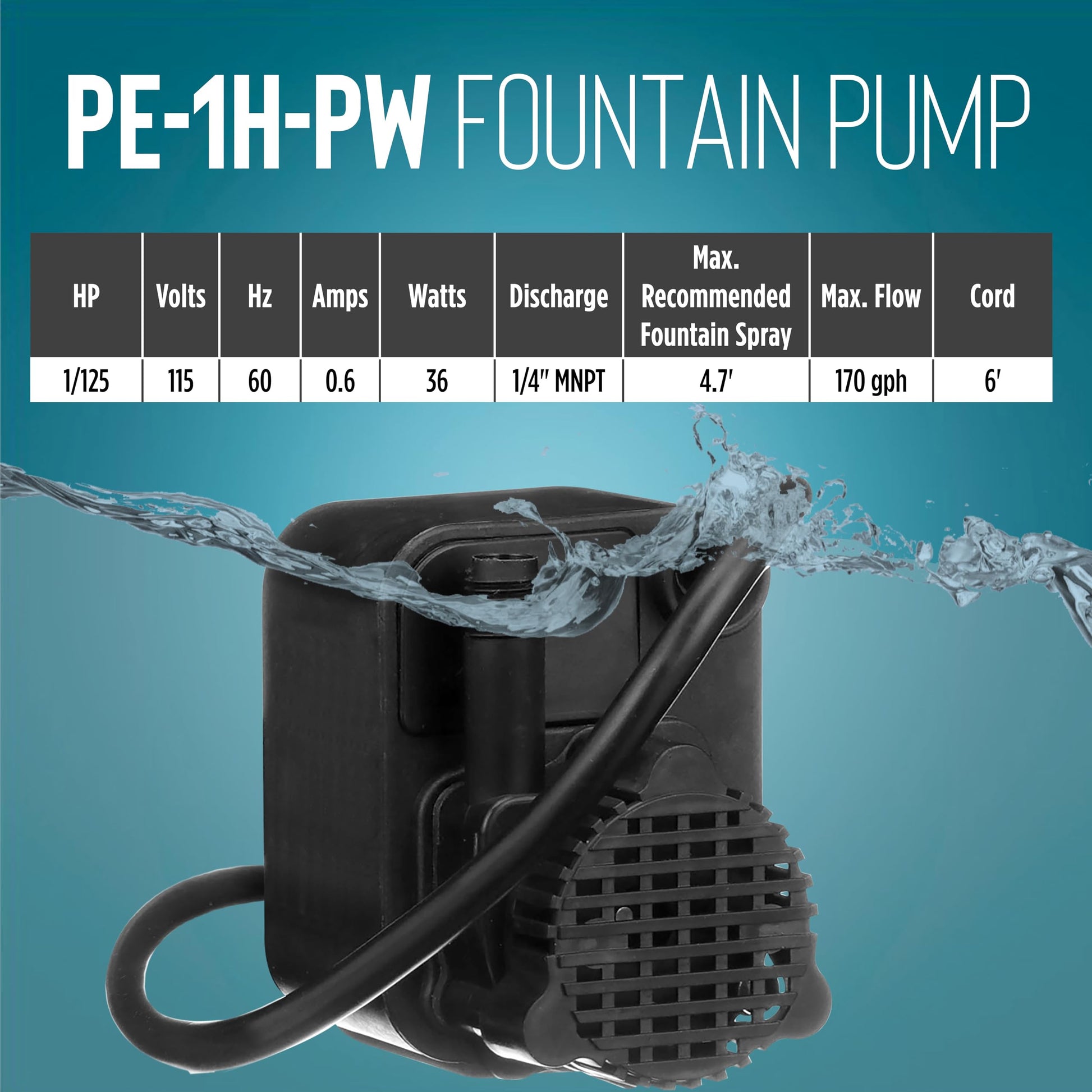

• MOTOR SPECIFICATIONS: 1/125 HP direct drive, 115-Volts, 60 Hz, 0.6 Amps, 36 Watts, 6-ft. cord, impedance protected; CSA listed in the USA and Canada
• SPECIFICATIONS: 1/4-inch MNPT discharge with flow control valve which accepts 3/8-inch or 1/2-inch tubing; 186 GPH at 1-ft. lift; 6.5-ft. shutoff; maximum 2.8 PSI

model number: 566604

Part Number: 566604

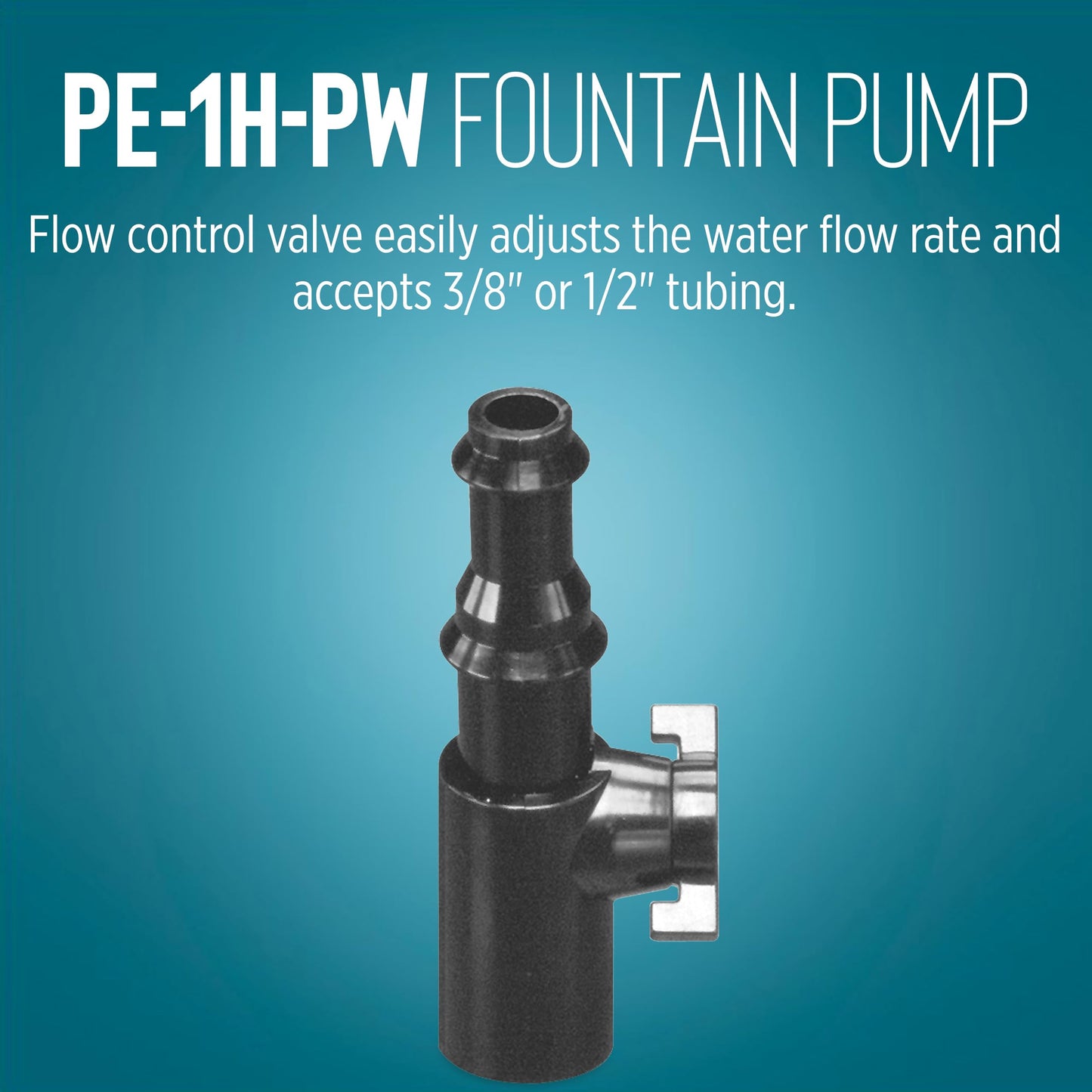

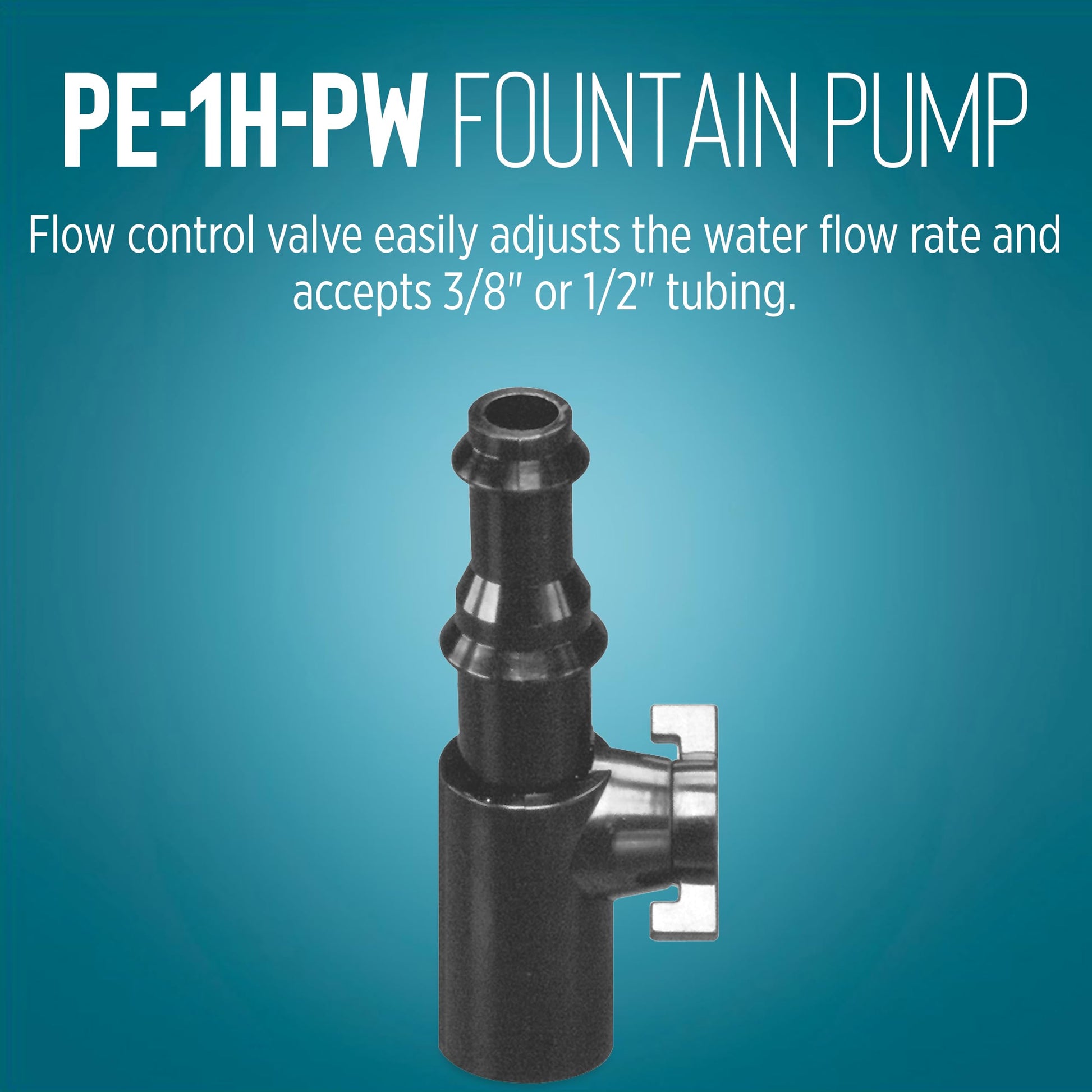

Details: The Little Giant PE-1H-PW 115-Volt, 186 gph epoxy encapsulated small submersible pump is ideal for statuary fountains and other water transfer or recirculation applications in shallow water. This pump features a hooded volute which helps lift the water from the bottom of the fountain or basin to help keep the pump primed even in shallow water. This pump is equipped with a 1/4' MNPT discharge and comes with a barbed flow control valve which is suitable for 3/8' or 1/2' I.D. vinyl tubing. The flow control valve adjusts the volume and speed of water allowing you to fine-tune the fountain's spray height and water effect.

The motor is a 0.6 Amp, 36 Watt, 115-volt, 60 Hz, 1/125 hp direct drive, oil-filled, impedance protected motor and is CSA listed in the USA and Canada. This pump comes with a 6' power cord and 3-prong plug.

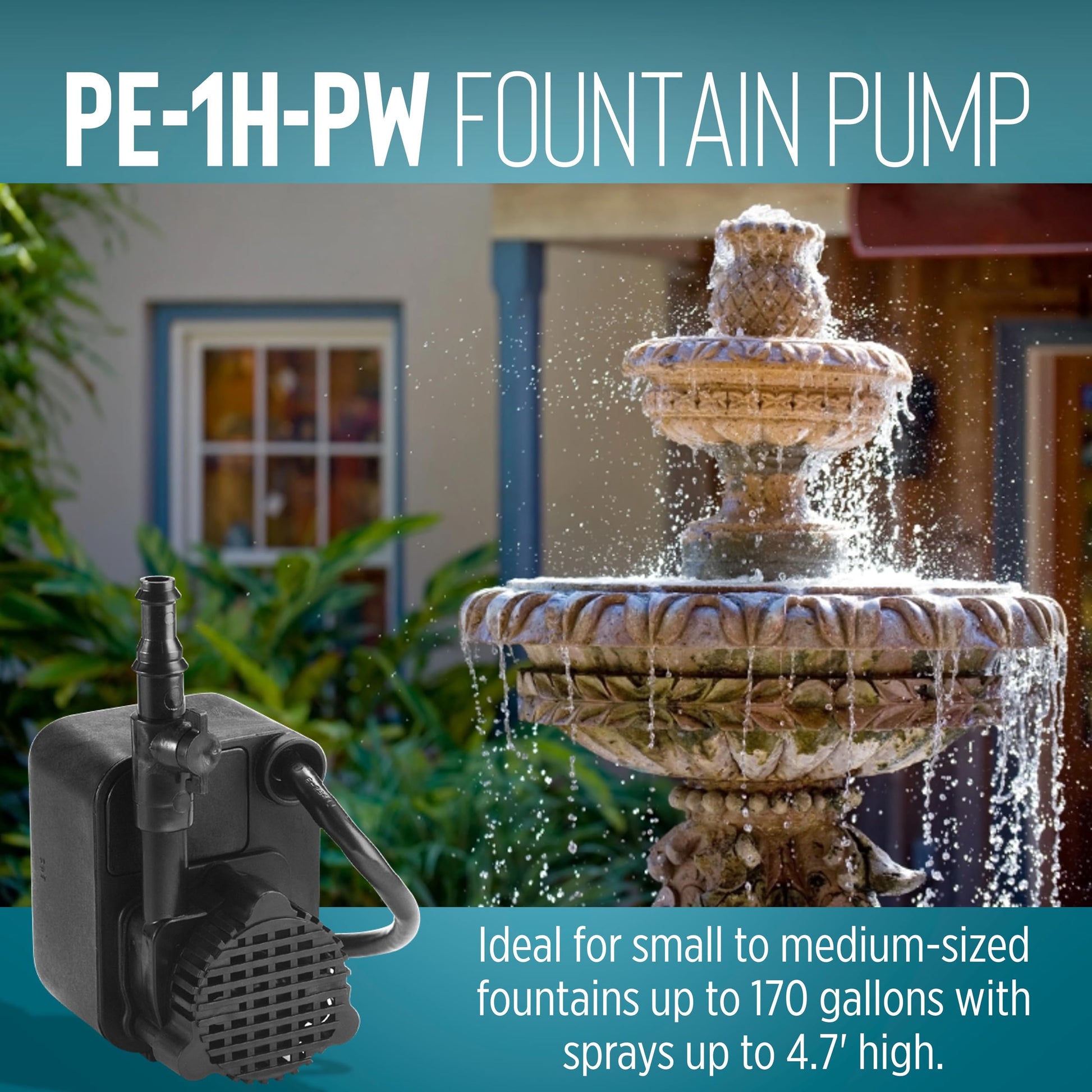

The PE-1H-PW has a shut-off of 6.5 ft and is ideally suited for fountains up to 186 gallons and will spray up to 4'4' high.

EAN: 0010121133280

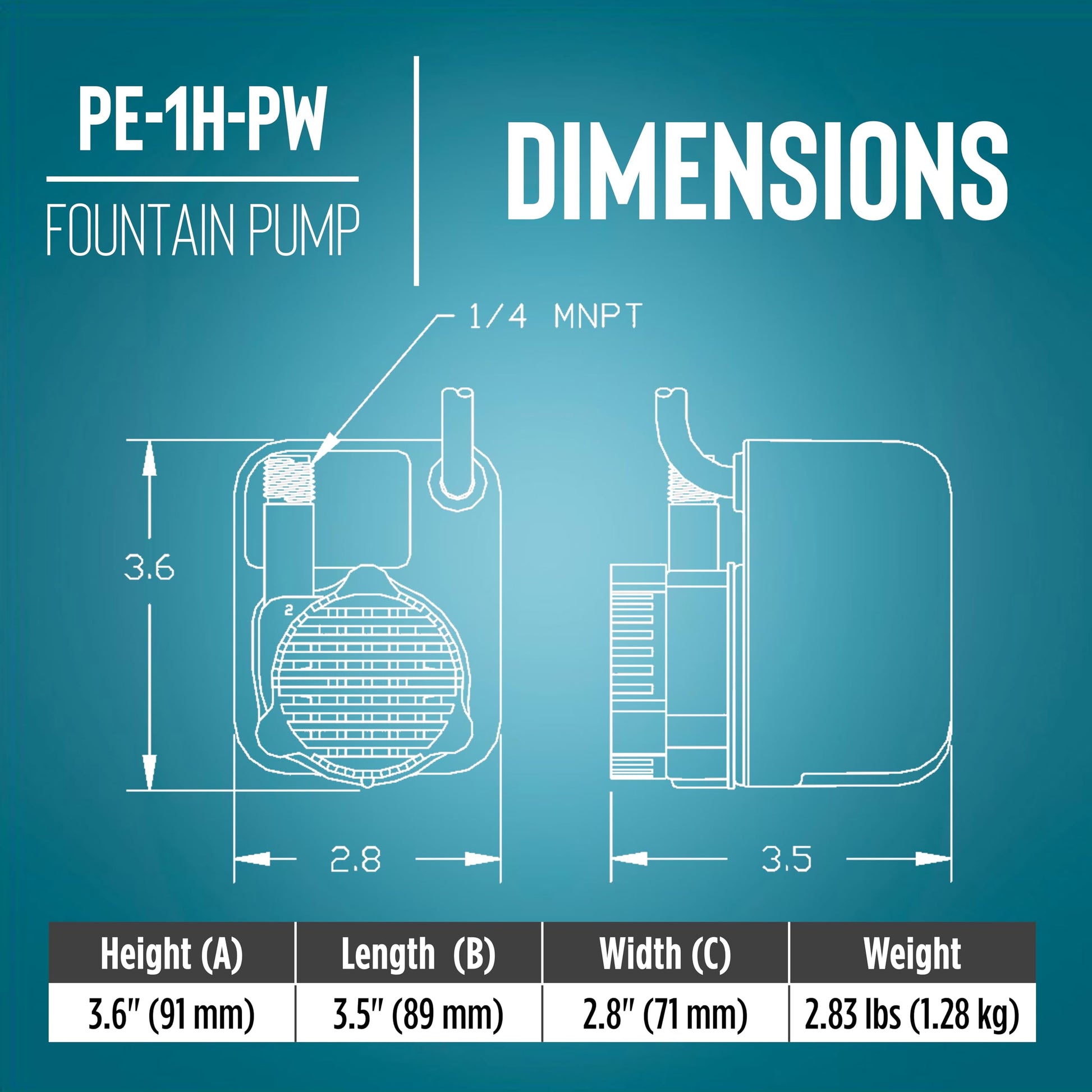

Package Dimensions: 7.8 x 5.7 x 5.1 inches
