Mister Landscaper 10 GPH Violet Flow Controller

Brand: Mister Landscaper

Color: Black/Violet

Features:

• Made in the USA

model number: MLS-V10

Part Number: MLS-V10

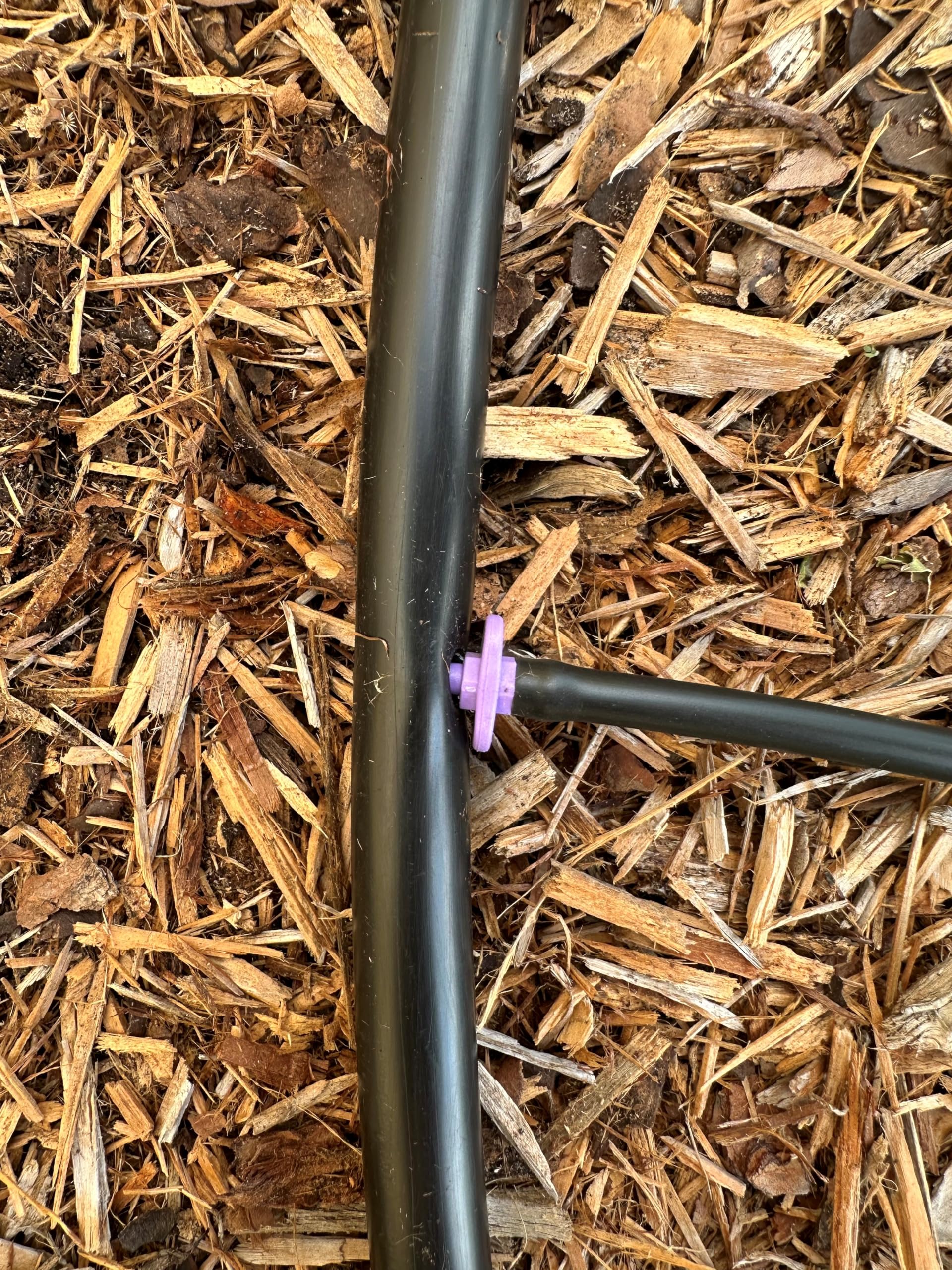

Details: 10-Count Bag of NEW Flow Restrictors Use this NEW Flow Restrictor to replace damaged violet flow controls on the CURRENT AND OLDER VERSION (MLS-V10-OLD) of the micro-stake assemblies. This newly designed and improved Violet Flow Restrictor minimizes clogging as it does not contain a diaphragm To Install, push the slanted angled barbed end into the ¼” Vinyl Tubing, and then push the blunt barbed end with a small orifice into the ½” Poly Tubing. This New Flow Restrictor does not need an internal diaphragm to help keep water flow consistent at various water pressures. This Flow Restrictor allows you to install more micro-stake assemblies per run. With a beginning water pressure of 40 to 50 PSI, you can run up to 40 of our micro-stake assemblies with a consistent flow of 9 to 15 GPH per each micro- spray. When installing a lesser amount of our micro-stake assemblies per run with a beginning water pressure of 40 psi, there is a consistent water flow of approximately 15 gph from each micro spray. In the event this NEW Flow Restrictor had a piece of debris block the orifice, simply pull the barbed end out of the ½” Poly and use our Yellow Cleaning Tool or a small paper clip to clear the orifice, then push the barbed end back into the1/2” Poly Tubing. Next, unthread the micro spray from the top of the Stake Assembly and turn on the water to flush the ¼” vinyl of debris for a few seconds and then re-thread the micro spray back into the top of the Stake. (10 New Violet Flow Restrictors Per Bag)

EAN: 0720413203101

Package Dimensions: 3.7 x 3.2 x 0.7 inches
