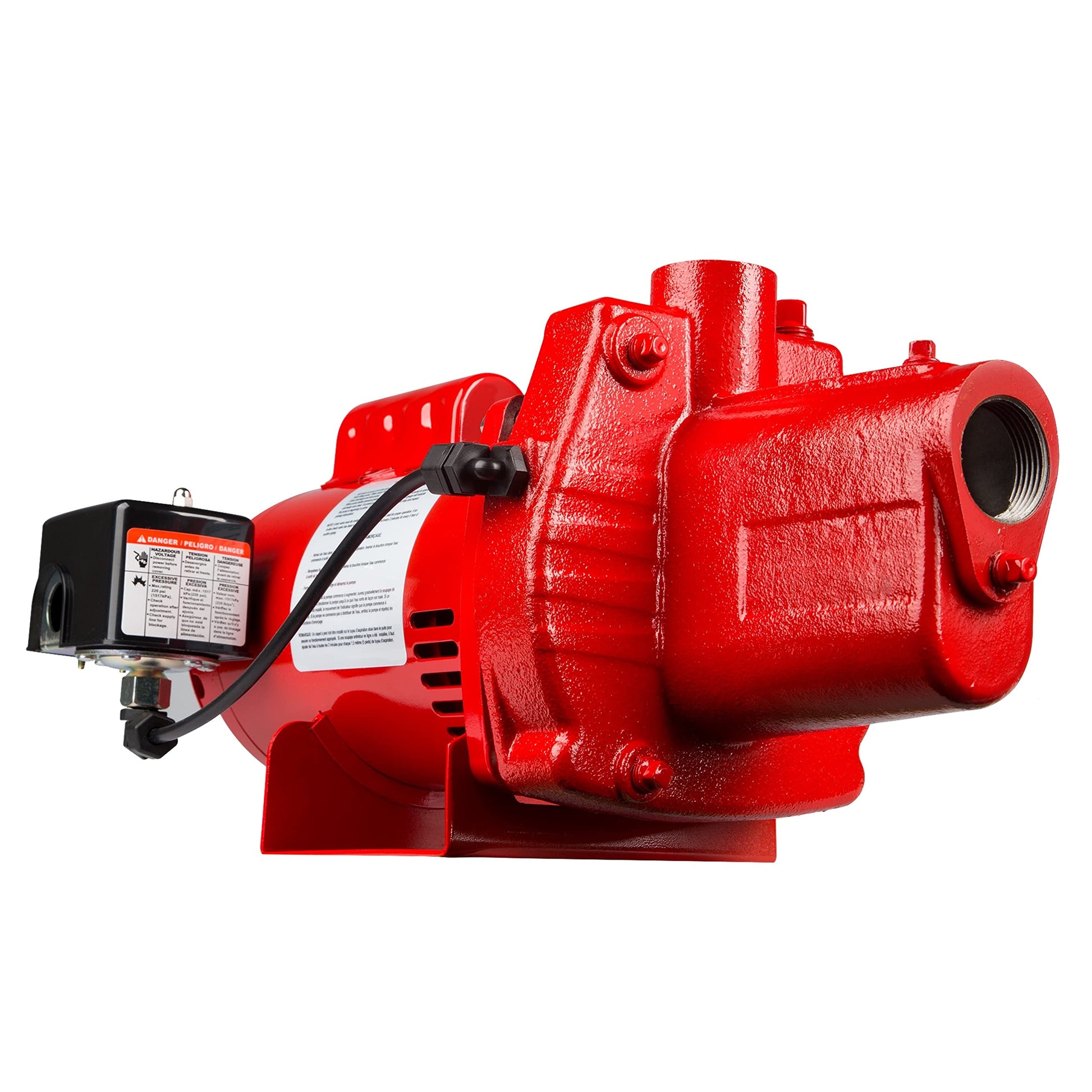

SHALLOW WELL JET PUMP: Red Lion Premium Cast Iron Shallow Well Jet Pump features a 1-1/4” FNPT suction intake and 1” FNPT outlet discharge; 3/4 HP pump can draw up to 16 gallons per minute

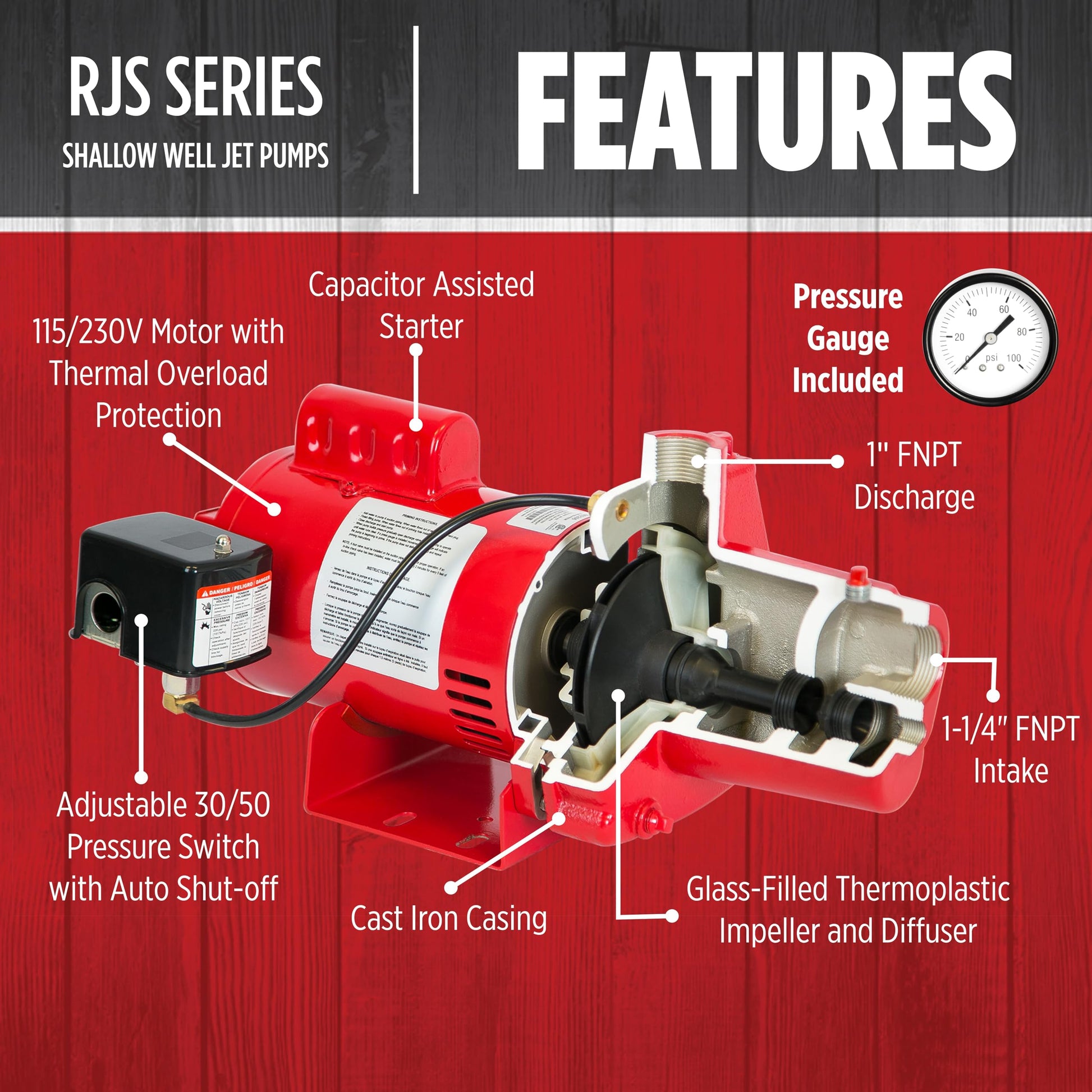

BUILT TO LAST: Rugged cast iron casing and volute for long life and high-efficiency; glass-filled thermoplastic impeller and diffuser for durability
HEAVY DUTY MOTOR: runs on either 115 or 230 volts; voltage must be selected to match incoming power source; Includes a capacitor for increased starting power; CSA listed in USA and Canada
INCLUDES: a factory pre-set 30/50 pressure switch that produces a working maximum pressure of 50 PSI and pressure gauge

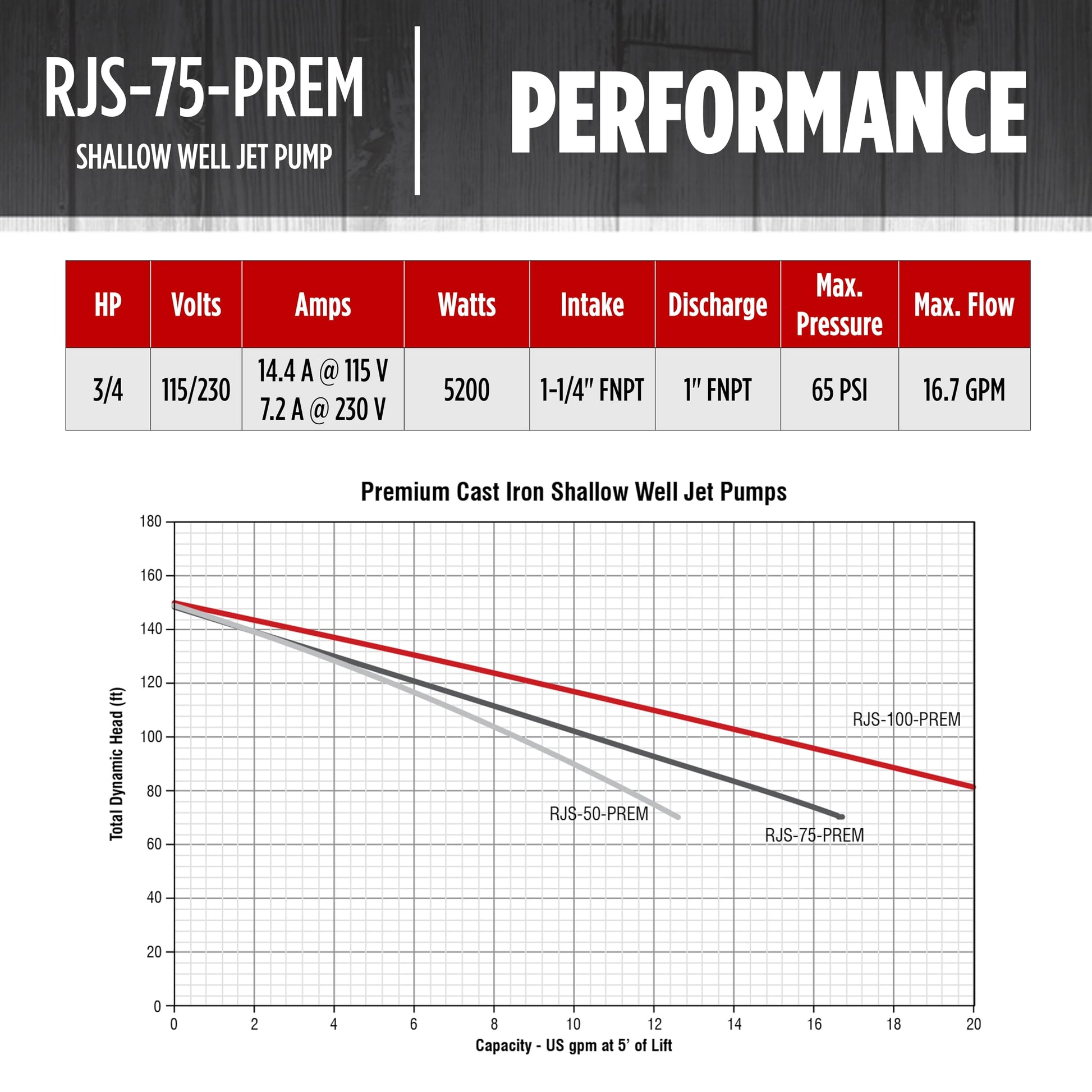

SPECIFICATIONS: 3/4 HP, 14.4 Amps at 115 Volts; 7.2 Amps at 230 Volts; 1-1/4-inch FNPT intake; 1-inch FNPT discharge; Max Pressure = 65 PSI; Max Head = 150 Ft.
model number: 602207
Part Number: 602207

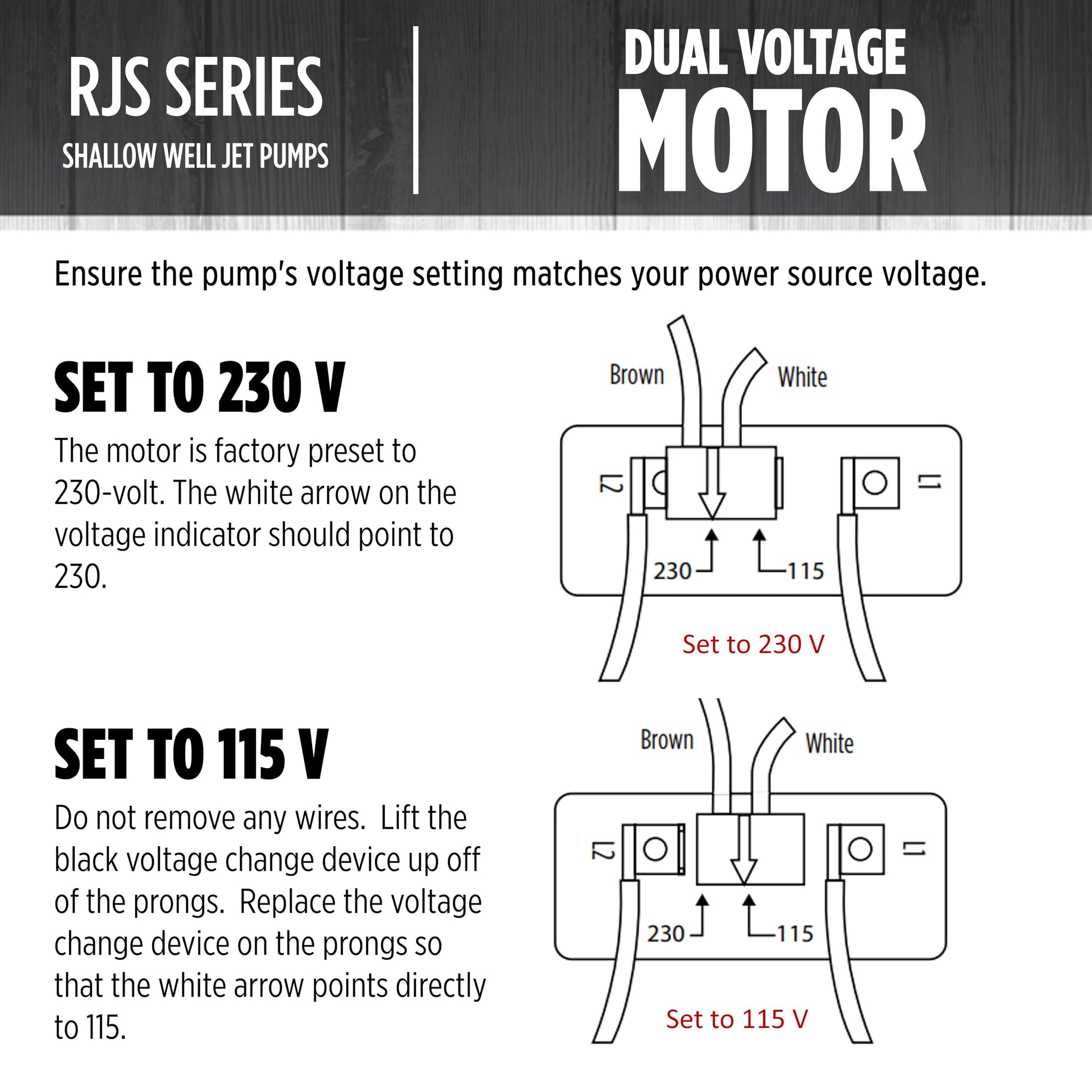

Details: The Red Lion RJS-75-PREM clean water pump is ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25 feet. Its rugged cast-iron construction is designed for years of service and reliability. Includes a factory pre-set 30/50 pressure switch and pressure gauge. 115/230 Volt motor is factory set for 230 Volts but can easily be changed to 115-Volts - follow the instructions in the owner's manual. Please ensure the voltage on the pump matches the power source voltage otherwise the pump will not operate at full power.
