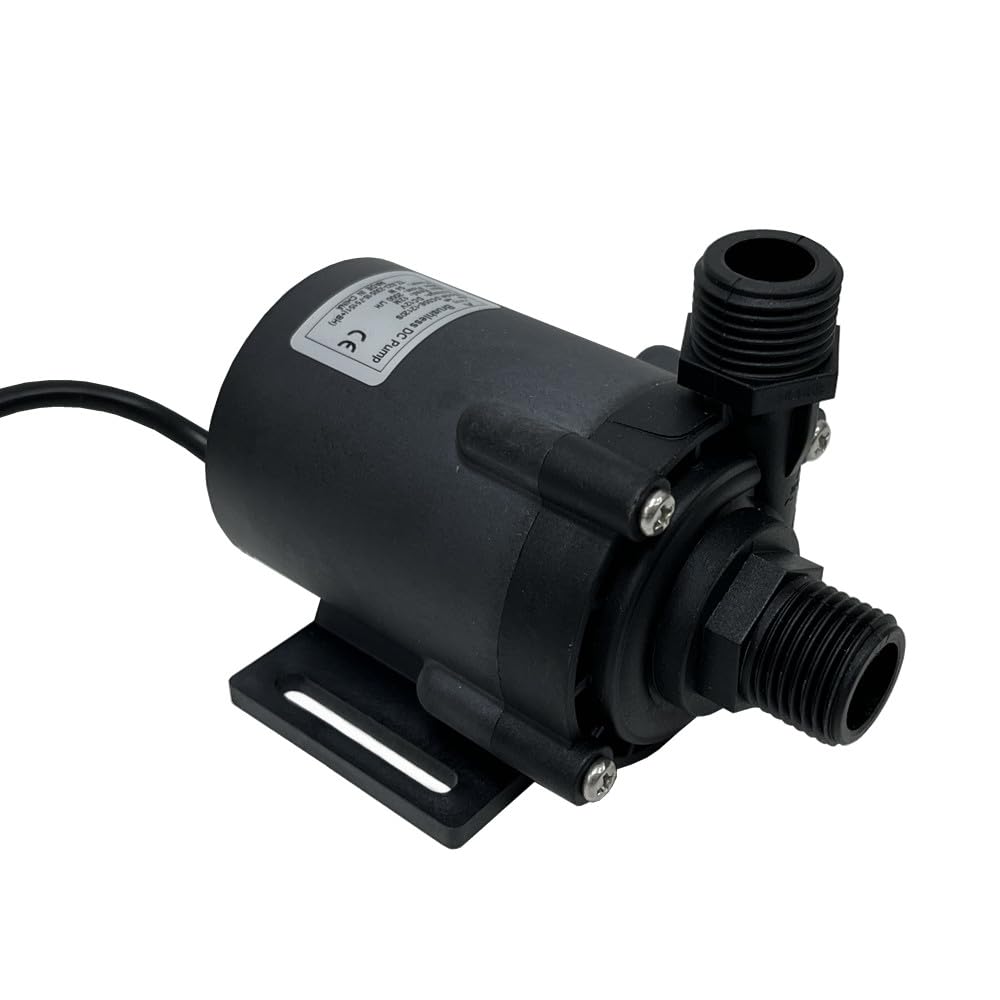

SHYSKY DC55E-12120S 12VDC Small Power efficient Brushless Water Pump 54W 12m 39ft 528GPH Flow Low Noise For Water Circulation Pressurization Cooling sys

Brand: SHYSKY

Color: Black

Features:

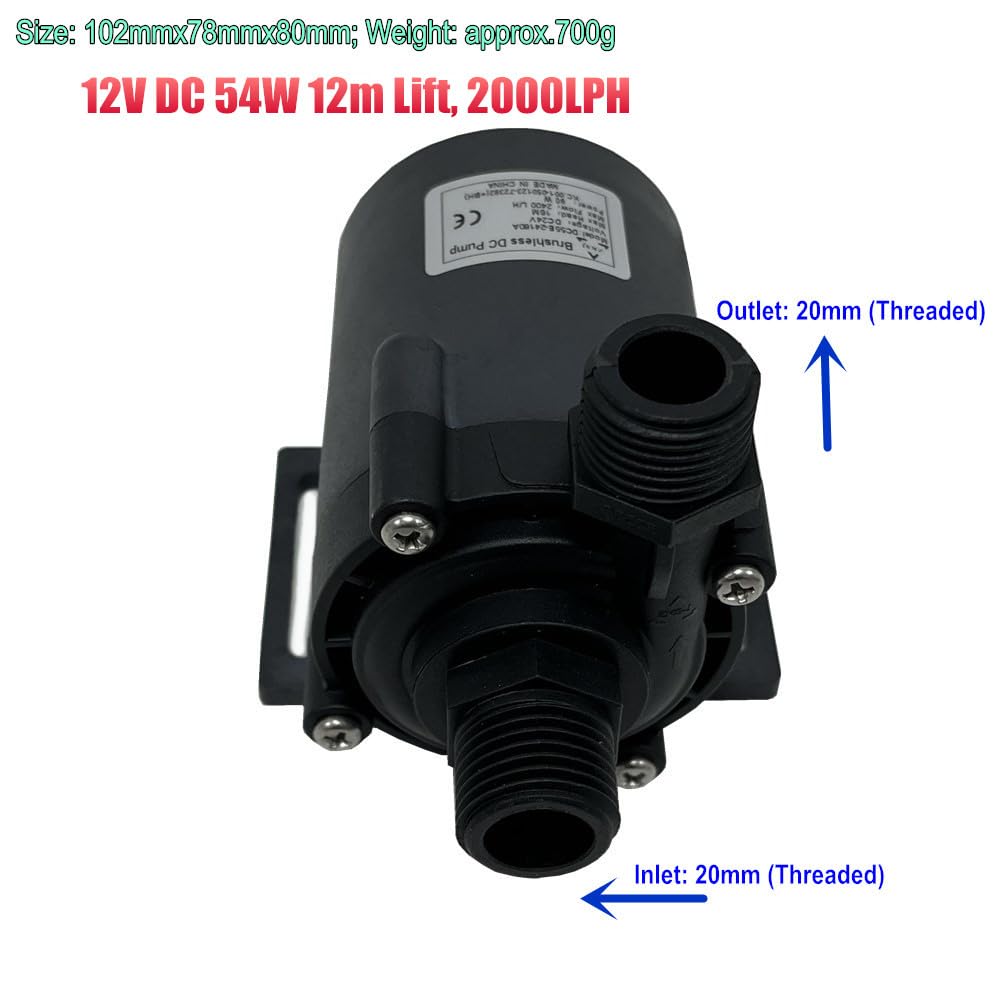

• SHYSKY DC55E-12120S Water pump, Inlet: G1/2, with external diameter of 20mm, outlet: G1/2, with external diameter of 20mm; Max static lift: 12 m (in pressure, 0.12MPa or 17PSI); Max horizontal flow rate: 2000 LPH (~ 33 L/Min).Typical feature is with quite high lift (output pressure) value, but with relatively low flow rate, suitable for some micro pressure system. (Certain parameters, cable length and other specific functions can be specially CUSTOMIZED, based on exact discussion and certain MOQ & lead time.)
• Brushless DC motor, also known as EC motor; Magnetic Driven (NO DIRECT AC 100-240V POWER CONNECTION, PROHIBITED); Small size but strong; Low consumption & High Efficiency; Long time continuous working with low noise;Safety - no spark, Explosion - proof; Low noise about 40dB.
• Submersible, IP68 waterproof; Max Working Temperature: 100 degree; Wide range of working voltage; Maintenance - free; Can be used to pump water, oil, other non-corrosive liquids (special liquids are needed to be pre-tested in advance).
• Variety Power: DC electric source, Battery or Solar Panel, etc; Soft Start with Low in-rush current, Especially suitable for Solar SYS who can not provide over-high startup impulse current; OEM and ODM are accepted based on MOQ and exact inquiry of customers.
• NEW FEATURE: DRY-RUN PROTECTION feature is integrated now in default. Pump works at rated voltage: When there exists no/ in-sufficient in-flow (or significant air bubble contained), it is DRY RUN scenario and protection will be triggered: Pump will access stop-run-stop-run---cycle, greatly reducing rotation. When flow comes sufficiently again, pump will re-access normal run. It greatly reduces physical friction between parts and heat generated, yet, not completely eliminate the impact.

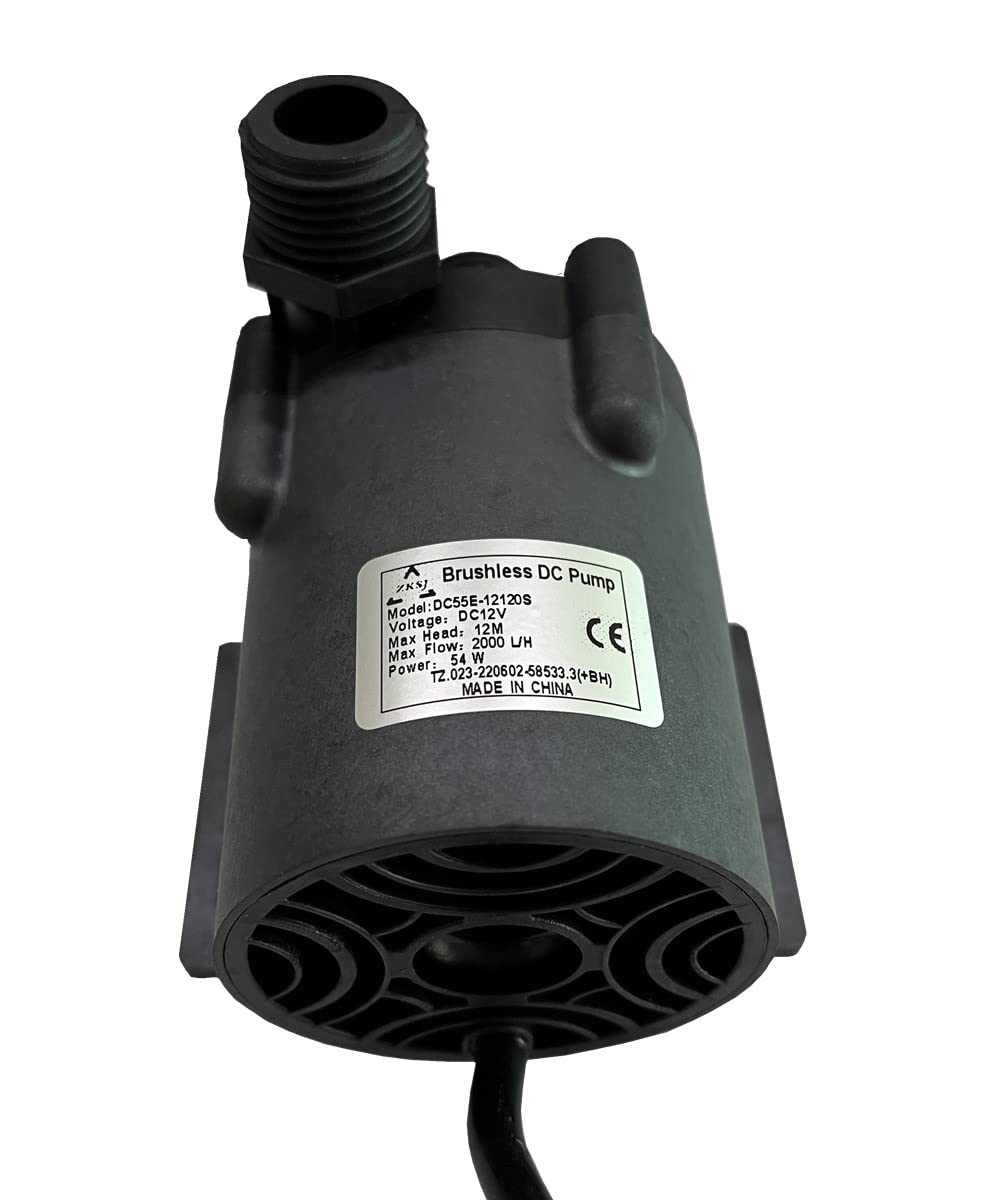

model number: DC55E-12120S

Part Number: SY-55E-12120S

EAN: 0711691819719

Package Dimensions: 5.2 x 4.8 x 4.3 inches
